(90.120.AD[03]) - VAR - 747851 - SEAT, MECHANICAL SUSPENSION

Запчасти Case 580N EP (90.120.AD[03]) - VAR - 747851 - SEAT, MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

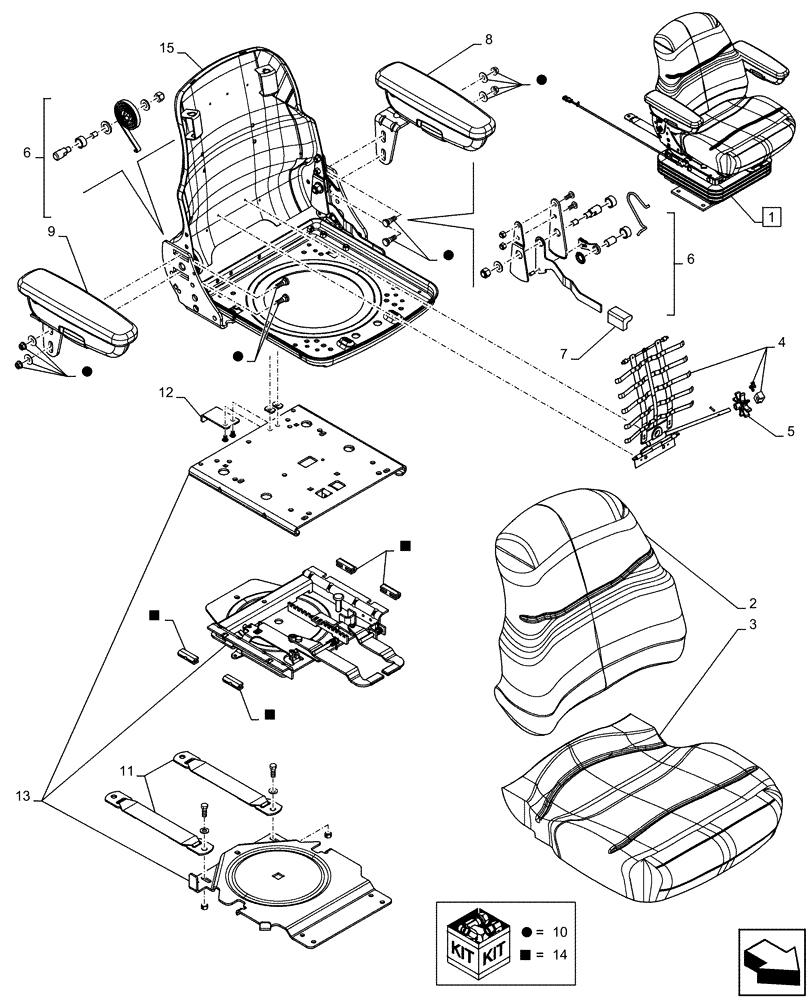

Схема запчастей Case 580N EP - (90.120.AD[03]) - VAR - 747851 - SEAT, MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
14
3
4
10
10
13
14
10
15
14
10
2
6
10
7
12
11
14
5
6
8
1
9
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84557475

SEAT

Assy, Incl 2 - 15

1шт.

See Seat Components also in Figures 90.120.AJ (02), 55.512.CQ

1шт.

2

87308127

SEAT BACK

1шт.

3

87308119

SEAT CUSHION

1шт.

4

87308130

SEAT BACK ADJUST DEV

1шт.

5

87037462

SEAT BACK ADJUST DEV

1шт.

6

86994165

SEAT ACCESSORY

1шт.

7

87416475

KNOB

1шт.

8

87308153

ARMREST

1шт.

9

87308152

ARMREST

1шт.

10

87308154

SEAT ACCESSORY

2шт.

11

87308128

SEAT ACCESSORY

1шт.

12

84174986

BRACKET

1шт.

13

87308131

SEAT ACCESSORY

1шт.

14

300680A1

KIT

1шт.

15

87308118

SEAT

1шт.
