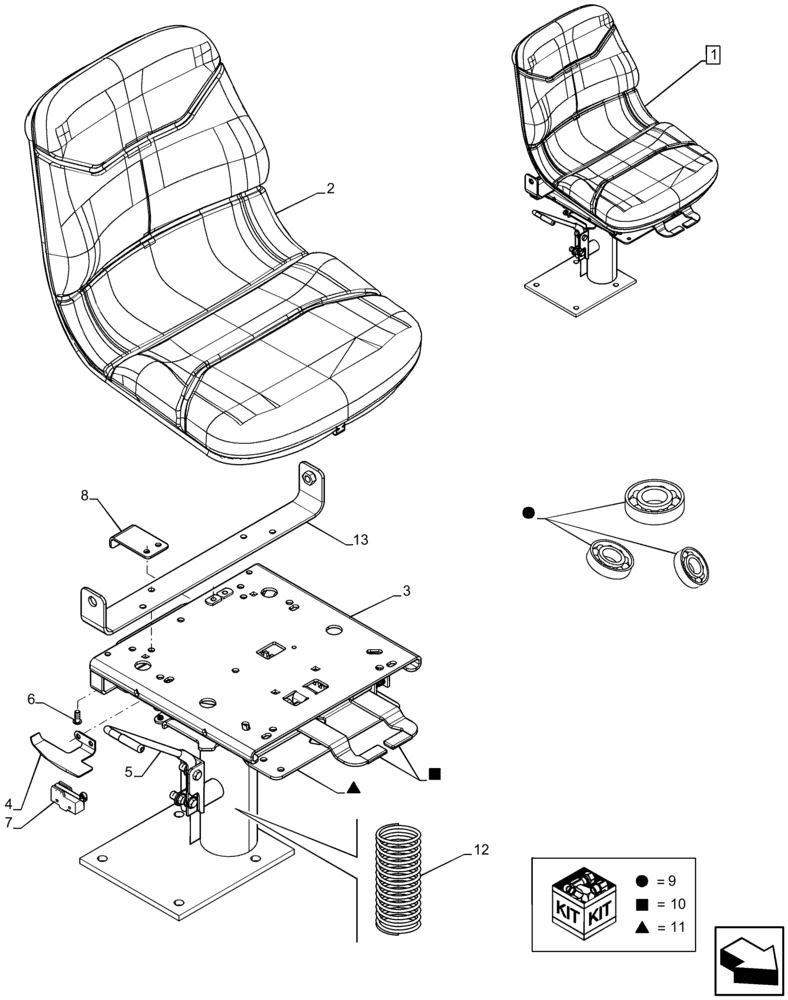

Запчасти Case 580N EP (90.120.AD[01]) - VAR - 747850 - DRIVER SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84276092

SEAT ASSY.

Incl 2 - 13

1шт.

2

87338681

SEAT BACK

1шт.

3

87346606

SEAT ACCESSORY

Swivel and Pedestal

1шт.

4

87346607

SEAT ACCESSORY

Lever, Switch Actuator

1шт.

5

87346611

SEAT ACCESSORY

Handle, Height Adjustment

1шт.

6

87346612

SEAT ACCESSORY

Button Head Screw, 5/16 x 3/4

4шт.

7

84276130

SEAT ACCESSORY

Switch/Harness, Height Adjustment

1шт.

8

84174986

BRACKET

1шт.

9

87308132

BEARING ASSY

Swivel Bearing

1шт.

10

87346633

SEAT ACCESSORY

KIT, Pedestal

1шт.

11

87346634

SEAT ACCESSORY

KIT, Slide Swivel

1шт.

12

87346615

SEAT ACCESSORY

Spring

1шт.

13

NSS

NOT SOLD SEPARAT

Seat Belt Anchorage, Incl in 1

1шт.
