(90.114.BG[02]) - VAR - 442082 - CANOPY, COVER, PLUG

Запчасти Case 580N EP (90.114.BG[02]) - VAR - 442082 - CANOPY, COVER, PLUG (90) - PLATFORM, CAB, BODYWORK AND DECALS

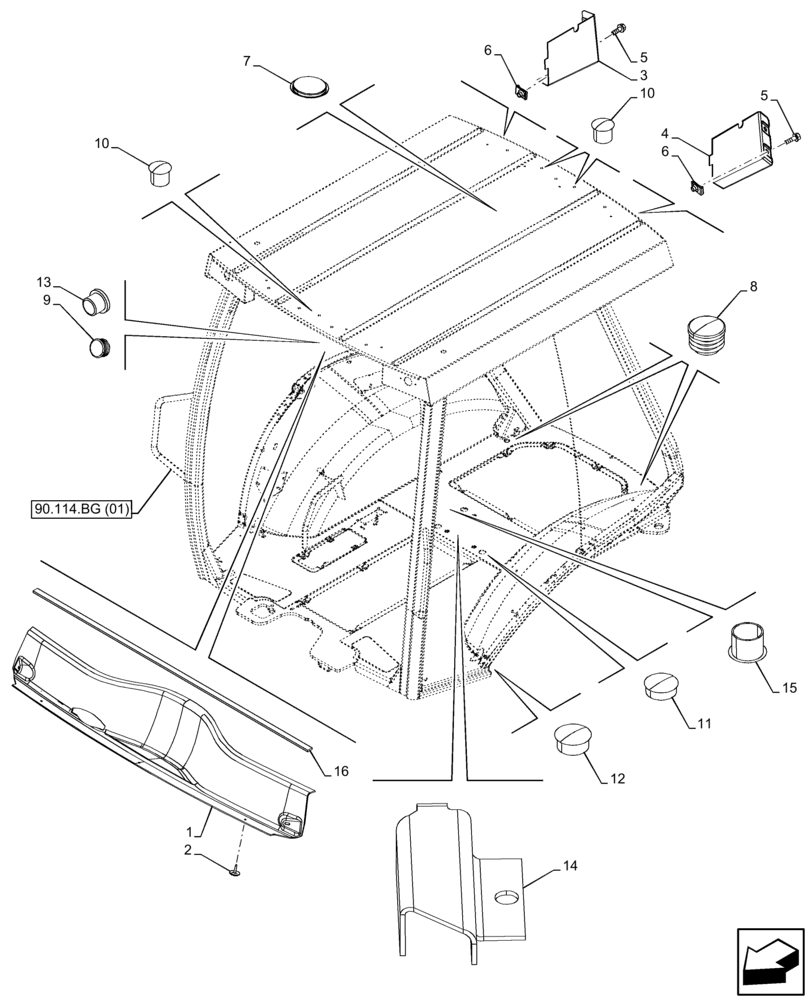

Схема запчастей Case 580N EP - (90.114.BG[02]) - VAR - 442082 - CANOPY, COVER, PLUG (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
11
90.114.bg (01)
3
9
6
10
7
13
10
16
15
6
2
1
4
5
8
14
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

367712A3

COVER

1шт.

2

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

Front

5шт.

3

84286659

COVER

Rear

1шт.

4

84286660

COVER

Rear

1шт.

5

87310098

BOLT,M6 x 20 Full SST BLO

4шт.

6

833-40406

NUT,M6, U

4шт.

7

D93716

PLUG,73.mm ID x 88.9mm OD

2шт.

8

382298A1

PLUG

2шт.

9

411549A1

PLUG

1шт.

10

353-402

PLUG,Dome, .375" hole, Nylon

4шт.

11

353-413

PLUG,Dome, 1.187" hole, Nylon

2шт.

12

353-410

PLUG,Dome, .875" hole, Nylon

1шт.

13

353-421

PLUG,Dome, .187" hole, Nylon

2шт.

14

186351A1

GUARD

1шт.

15

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

16

385506A1

PROTECTION STRIP

1шт.
