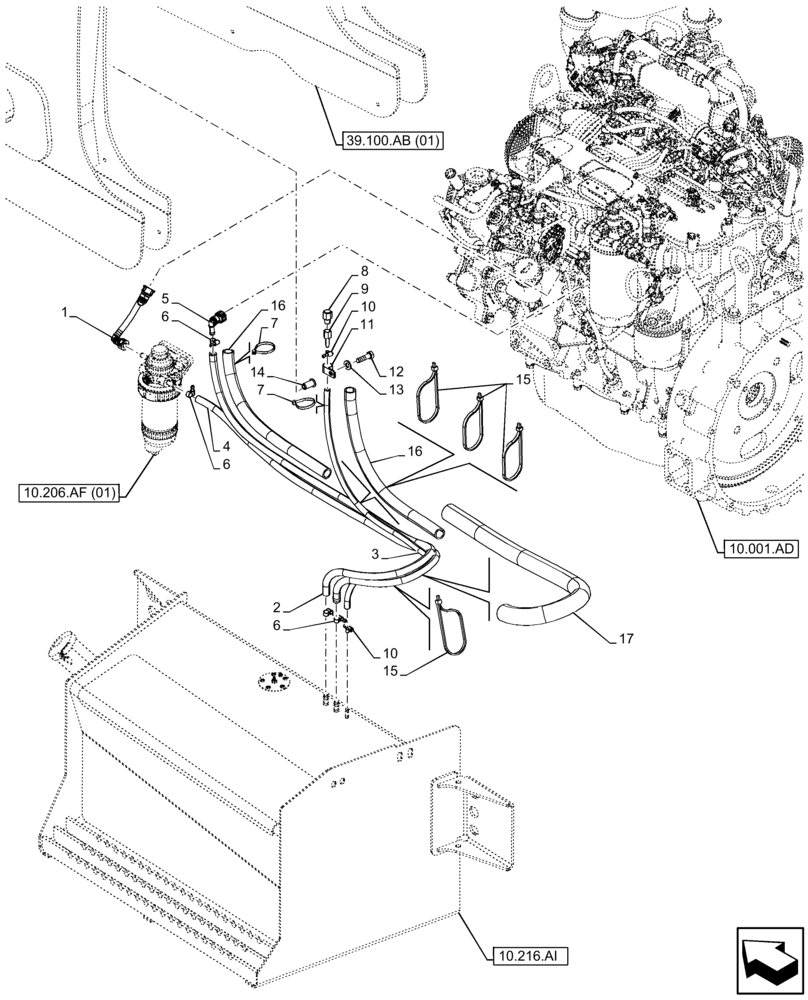

Запчасти Case 580N EP (10.216.BA) - FUEL LINE (10) - ENGINE

1

84391629

RIGID TUBE

Fuel, Filter to Engine

1шт.

2

87658696

FUEL HOSE,9.53 mm ID x 1315.00 mm, SAE 30R7

Tank to Engine

1шт.

3

87656146

FUEL HOSE,6.35 mm ID x 880.00 mm

Fuel Vent

1шт.

4

47589004

FUEL HOSE,9.5mm ID x 1170mm L

Tank to Fuel Filter, 9.5mm ID, 1270mm

1шт.

5

84425860

FITTING,90 Degree, for Fuel Hose 9.5mm ID

90°, for Fuel Hose 9.5mm ID

1шт.

6

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

4шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

8

130047A1

BREATHER ASSY.

1шт.

9

217-117

FITTING,1/4" Hose x 1/4" NPTF, Fem, Barbed

1шт.

10

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

11

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

12

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

13

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

14

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.

16

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

19mm ID, 460mm

2шт.

17

47589468

HOSE PROTECTION,34mm ID x 750mm L

34mm ID, 750mm

1шт.
