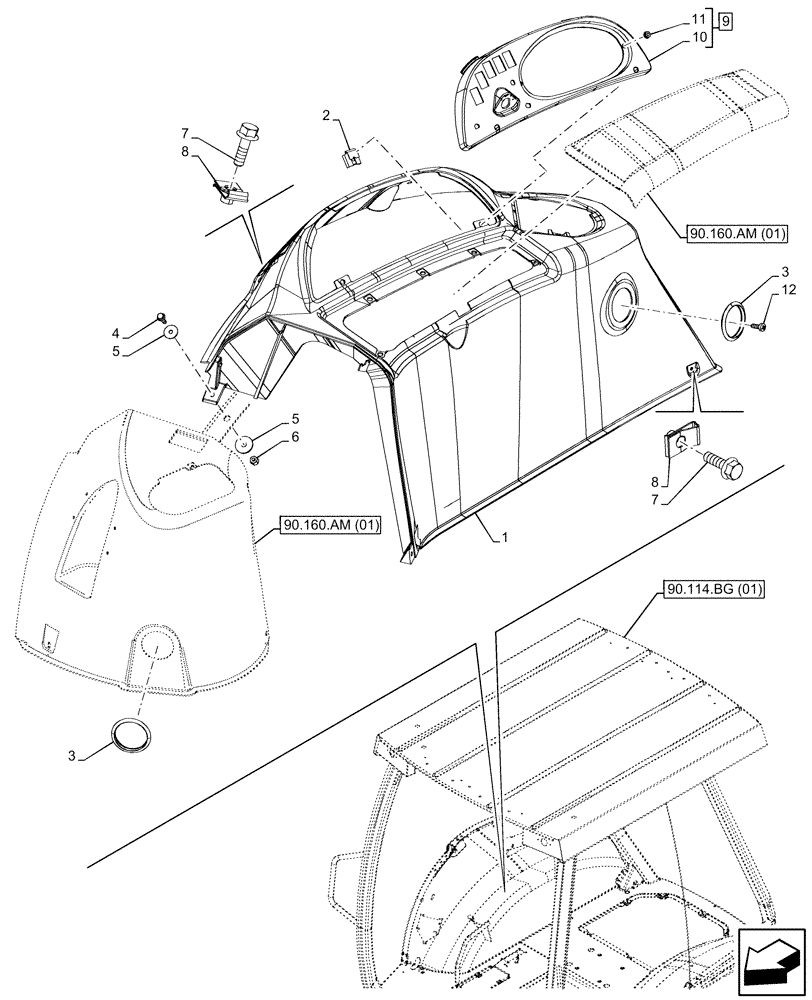

Запчасти Case 580N EP (90.110.AH) - VAR - 442082 - INSTRUMENT PANEL, CONSOLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

360250A2

CONSOLE

1шт.

2

86625077

SPRING NUT,J, Ret, #10-24

2шт.

3

D93716

PLUG,73.mm ID x 88.9mm OD

2шт.

4

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

5

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

6

832-10406

NUT,M6 x 1, Cl 8

1шт.

7

87310098

BOLT,M6 x 20 Full SST BLO

4шт.

8

833-40406

NUT,M6, U

4шт.

9

391818A2

BEZEL

ASSY, Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Instrument Cluster, Incl in 9

1шт.

11

390258A1

INSERT

2шт.

12

87310144

SELF-TAP SCREW,Pan Head, M6 x 12.7mm

4шт.
