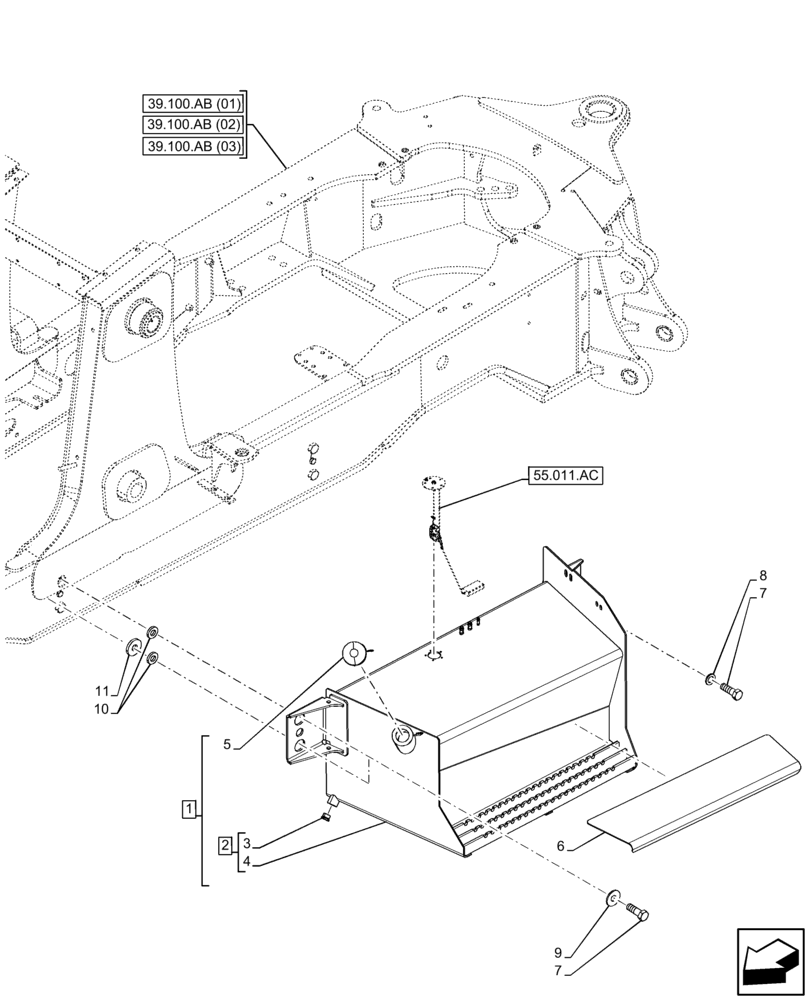

Запчасти Case 580N EP (10.216.AI) - FUEL TANK (10) - ENGINE

1

47575069

FUEL TANK

(31 U.S. Gallons / 117 Liters), ASSY, Incl 2 - 6

1шт.

See Fuel Tank Components also in Figure 55.011.AC

1шт.

2

47575072

FUEL TANK,117L

ASSY, Incl 3, 4

1шт.

3

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

1шт.

4

NSS

NOT SOLD SEPARAT

Tank, Incl in 2

1шт.

5

87335469

LOCKABLE FUEL CAP,Male, Lockable

1шт.

6

87679228

ANTI-SKID STRIP

1шт.

7

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

9

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

10

185926A1

SPACER,21mm x 40mm x 6.6mm Th

2шт.

11

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

1шт.
