(90.100.AU) - HOOD

Запчасти Case 580N EP (90.100.AU) - HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

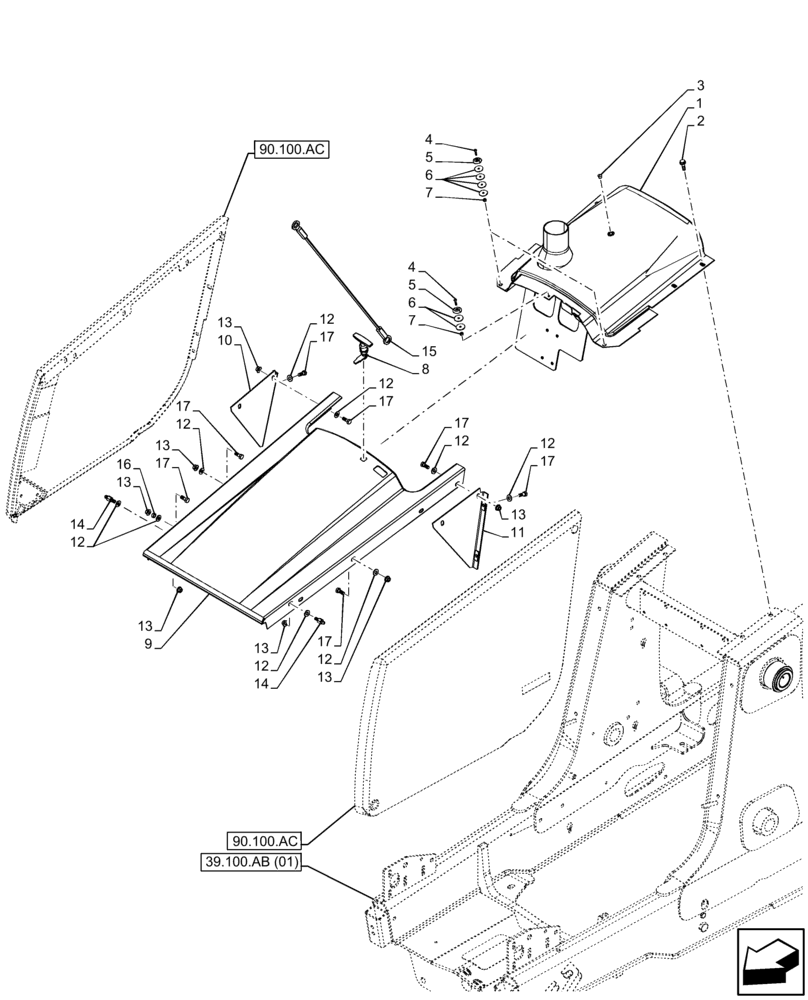

Схема запчастей Case 580N EP - (90.100.AU) - HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
13
12
3
17
13
4
7
6
12
15
5
2
12
14
13
90.100.ac
12
17
11
17
5
13
4
12
13
90.100.ac
12
9
17
1
17
8
13
17
12
7
16
12
17
39.100.ab (01)
14
13
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84541174

PLATE

Fixed Hood

1шт.

2

392828A2

BOLT,M10-1.5 x 40mm L W/CAPTURED WASHER

4шт.

3

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

4

440-11014

SCREW,Cross Pan Hd, #10-24 x 7/8"

3шт.

5

109879A1

SPACER,5.5mm ID x 30mm OD

3шт.

6

185325A1

SPACER,5.5mm ID x 30mm OD x 2mm L

10шт.

7

231-14109

LOCK NUT,#10-24, GB

3шт.

8

175599A1

LATCH

Hood Single Hole Mount

1шт.

9

87594903

ENGINE HOOD

1шт.

10

362607A1

SUPPORT

RH

1шт.

11

362609A1

SUPPORT

LH

1шт.

12

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

14шт.

13

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

10шт.

14

139363A1

BALL JOINT,M10 x 1.5mm x 42mm L

2шт.

15

144908A2

CABLE,638mm L

Hood Retaining

1шт.

16

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

17

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

12шт.
