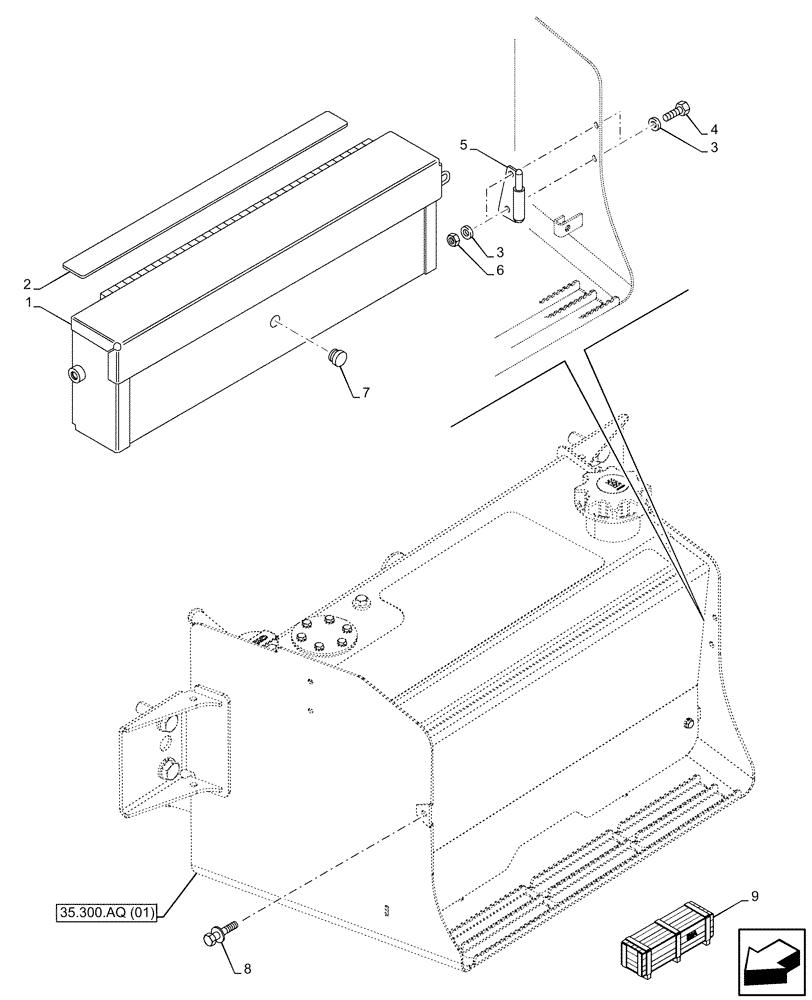

Запчасти Case 580N EP (88.100.AH) - VAR - 747875 - TOOL BOX (88) - ACCESSORIES

1

47400283

TOOL BOX

1шт.

2

87694065

ANTI-SKID STRIP

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

5

382202A2

HINGE

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

7

L60224

BUMPER

1шт.

8

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

1шт.

9

47408246

CONSTRUCTION DIA

Tool Box, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
