(88.100.84[20]) - DIA KIT, BOOM, 580SN ON 580N

Запчасти Case 580N EP (88.100.84[20]) - DIA KIT, BOOM, 580SN ON 580N (88) - ACCESSORIES

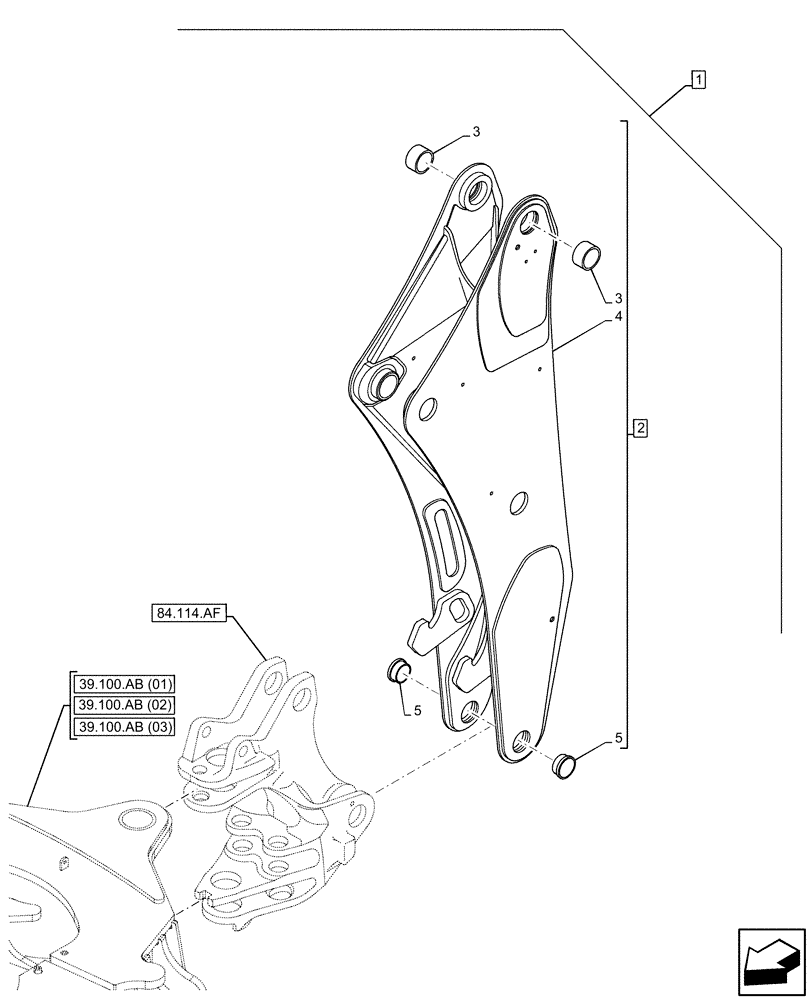

Схема запчастей Case 580N EP - (88.100.84[20]) - DIA KIT, BOOM, 580SN ON 580N (88) - ACCESSORIES
5
3
39.100.ab (01)
84.114.af
4
2
3
39.100.ab (02)
5
1
39.100.ab (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47804903

CONSTRUCTION DIA

580SN Boom on 580N, Incl 2 - 5

1шт.

2

84540361

BOOM

ASSY, Incl 3 - 5

1шт.

3

84240578

BUSHING,70mm ID x 90mm OD x 50mm L

2шт.

4

NSS

NOT SOLD SEPARAT

Boom, Incl in 1

1шт.

5

84246051

BUSHING,60.19mm ID x 84mm OD x 39.8mm L

2шт.

Выбрано товаров: 5
