Запчасти Case 580N EP (88.100.35[59]) - DIA KIT, HYDRAULIC COUPLER, FRONT LOADER, VALVE (88) - ACCESSORIES

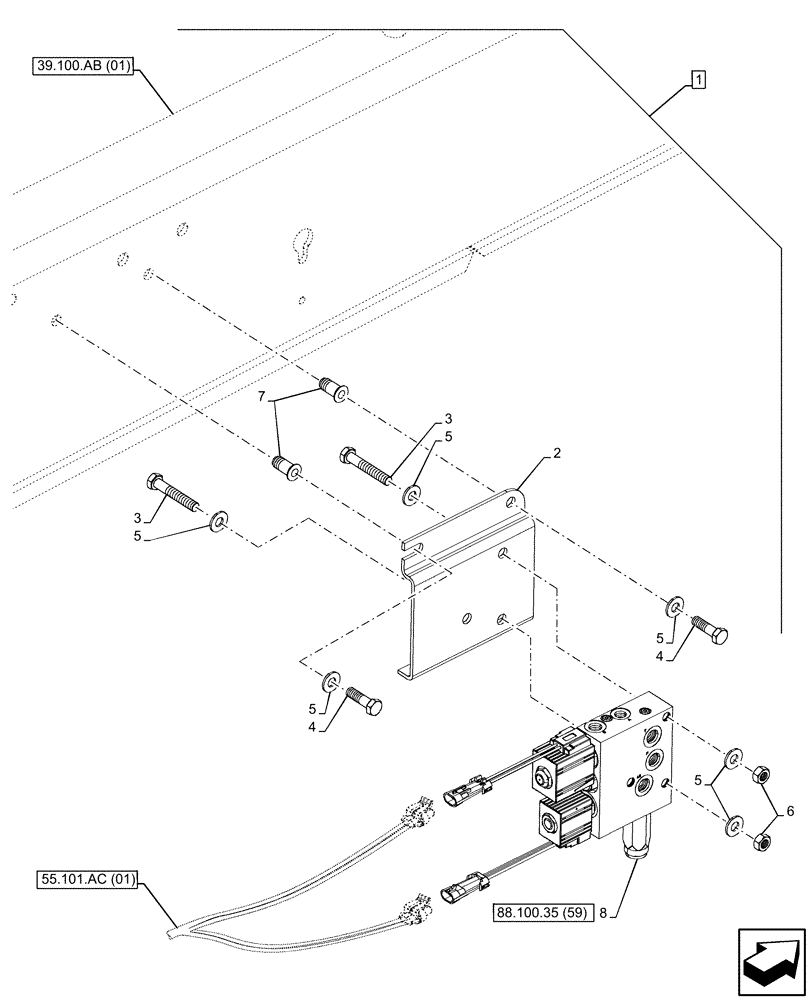

Схема запчастей Case 580N EP - (88.100.35[59]) - DIA KIT, HYDRAULIC COUPLER, FRONT LOADER, VALVE (88) - ACCESSORIES
6
8
1
2
5
3
5
4
5
55.101.ac (01)
7
3
4
5
39.100.ab (01)
5
88.100.35 (59)

Артикул

Название

Примечание

Количество

1

84492772

KIT

Hydraulic Loader Coupler System, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84275116

BRACKET

Coupler Valve

1шт.

3

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

4

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

6

86500689

NUT,M10 x 1.5, Cl 10

2шт.

7

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.

8

87435909

SOLENOID VALVE

ASSY, Hydraulic Coupler

1шт.

Выбрано товаров: 9
