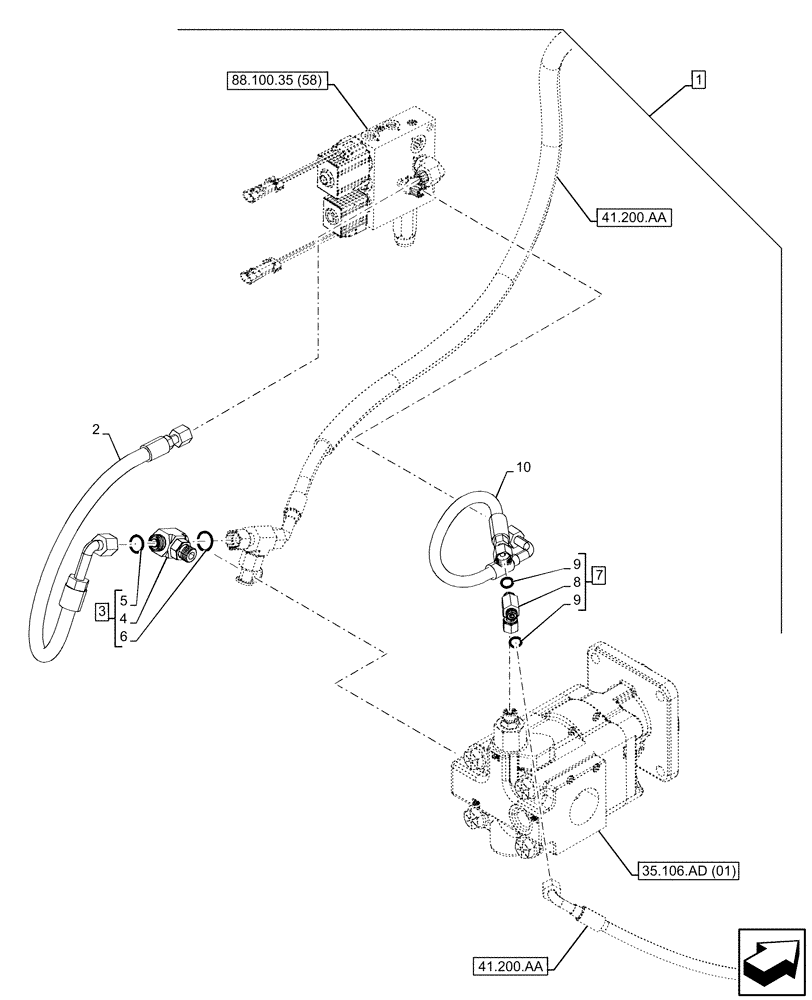

Запчасти Case 580N EP (88.100.35[58]) - DIA KIT, HYDRAULIC COUPLER, FRONT LOADER, LINE (88) - ACCESSORIES

1

84492772

KIT

Hydraulic Loader Coupler System, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84266294

HYDRAULIC HOSE,10mm ID x 650mm L

10mm ID x 650mm L, Pump to Coupler, Pressure

1шт.

3

201-402

TEE,13/16"-18 x 3/4"-16 Br, ORFS

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

10

84407215

HYDRAULIC HOSE,6.3mm ID x 570mm L

6.3mm ID x 570mm L, Pump to Coupler, Pressure

1шт.
