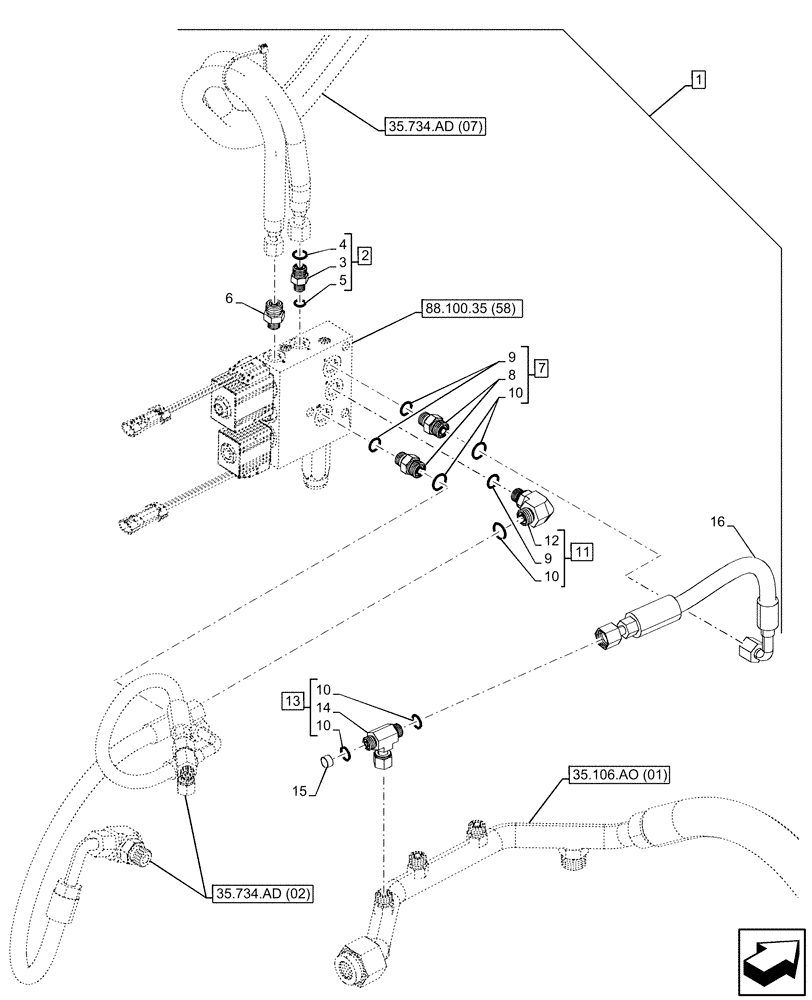

Запчасти Case 580N EP (88.100.35[57]) - DIA KIT, HYDRAULIC COUPLER, FRONT LOADER, LINE (88) - ACCESSORIES

1

84492772

KIT

Hydraulic Loader Coupler System, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

84261550

FITTING,11/16"-6 ORFS x 1/2"-5 ORB

11/16-18 ORFS-ORB 1/2

1шт.

7

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

2шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

11

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 9, 10, 12

1шт.

12

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 11

1шт.

13

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

ASSY, Incl 10, 14

1шт.

14

NSS

NOT SOLD SEPARAT

Tee, Incl in 13

1шт.

15

87331950

CAP ASSY.,Hex, 11/16"-16

1шт.

16

84514721

HOSE ASSY.,10mm ID x 360mm L

Coupler, Return

1шт.
