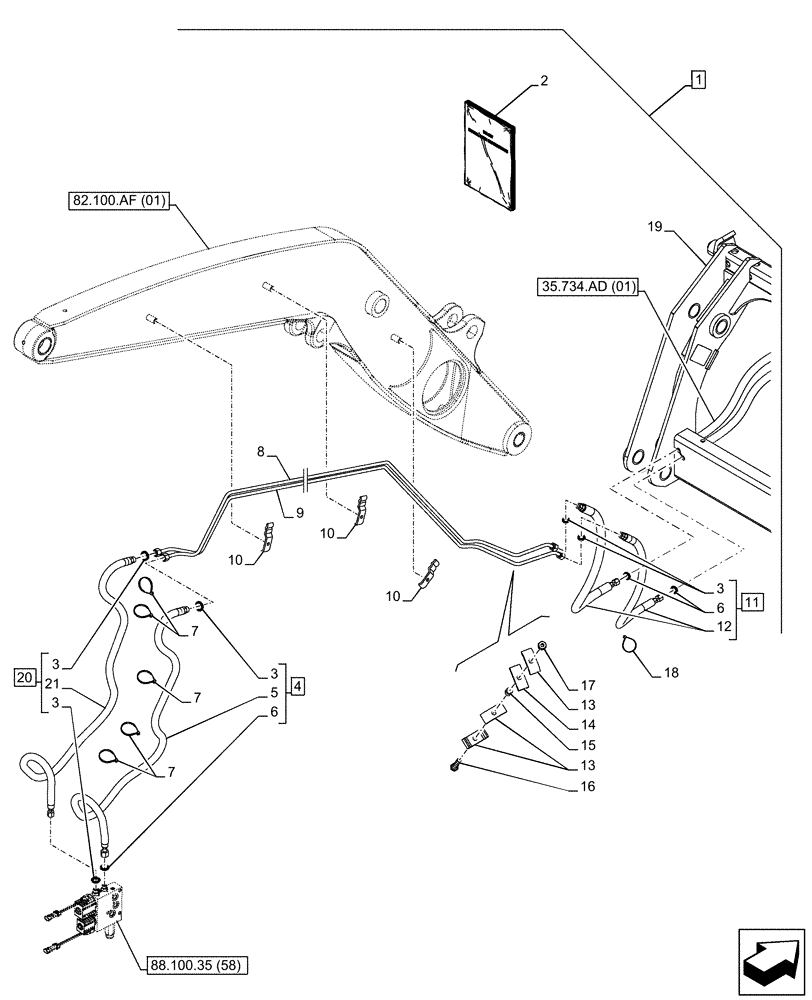

Запчасти Case 580N EP (88.100.35[56]) - DIA KIT, HYDRAULIC COUPLER, FRONT LOADER, LINE (88) - ACCESSORIES

1

84492772

KIT

Hydraulic Loader Coupler System, Incl 2 - 21

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84492773

INSTRUCTION

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

4

84311873

HOSE,6.35mm ID x 1497mm L, SAE 100R16

ASSY, Coupler Port A, Incl 3 (Qty 1), 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

7

86566989

CABLE TIE,208mm L

5шт.

8

84401877

HYD TUBE

Coupler Port A

1шт.

9

84401879

HYD TUBE

Coupler Port B

1шт.

10

302820A2

CLAMP

3шт.

11

84266292

HYDRAULIC HOSE,6.35mm ID x 740mm L, SAE 100R16

ASSY, Loader Coupler-Bucket End, Incl 3 (Qty 1), 6 (Qty 1), 12

2шт.

12

NSS

NOT SOLD SEPARAT

Hose, Incl in 11

2шт.

13

D138055

CLAMP

3шт.

14

84346489

PLATE

1шт.

15

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

16

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

17

412141

NUT,M10 x 1.5, Cl 8

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

19

84367364

LOADER

Loader with Auxiliary Hydraulic

1шт.

20

84337930

HOSE,6.35mm ID x 1497mm L, SAE 100R16

ASSY, Coupler Port B, Incl 3 (Qty 2), 21

1шт.

21

NSS

NOT SOLD SEPARAT

Hose, Incl in 20

1шт.
