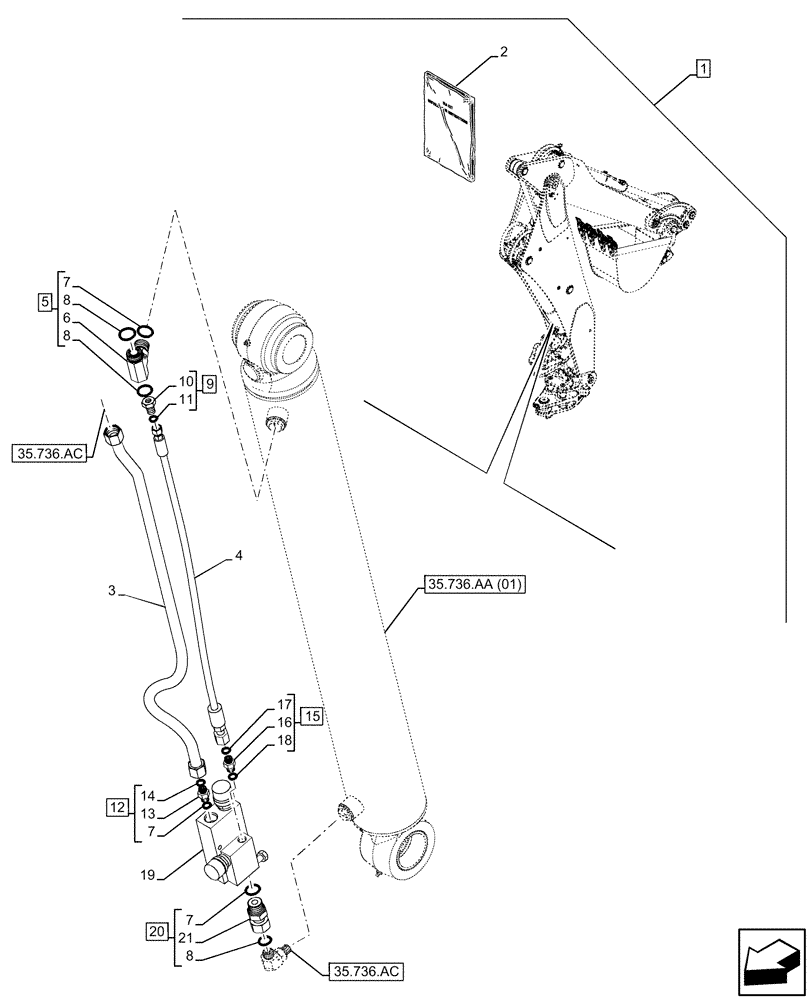

Запчасти Case 580N EP (88.100.35[37]) - DIA KIT, BOOM, LOCK VALVE (88) - ACCESSORIES

1

84588436

CONSTRUCTION DIA

Boom Lock Valve, Incl 2 - 21

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

84588444

INSTRUCTION

1шт.

3

84522698

HYD TUBE

Boom, Inlet

1шт.

4

84522700

HYDRAULIC HOSE,6.3mm ID x 870mm L

6.3mm ID x 870mm L, Boom Lock Valve, Pilot Control

1шт.

5

87681197

HYD CONNECTOR

ASSY, Incl 6, 7 (Qty 1), 8 (Qty 2)

1шт.

6

NSS

NOT SOLD SEPARAT

Tee. Incl in 5

1шт.

7

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

9

84522377

REDUCER

ASSY, Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Reducer, Incl in 9

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

ASSY, Incl 7 (Qty 1), 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

1шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

19

84574590

VALVE

Boom, Lock

1шт.

20

85805124

HYD CONNECTOR,1-14 ORFS x 7/8-14 ORB

ASSY, Incl 7 (Qty 1), 8 (Qty 1), 21

1шт.

21

NSS

NOT SOLD SEPARAT

1шт.
