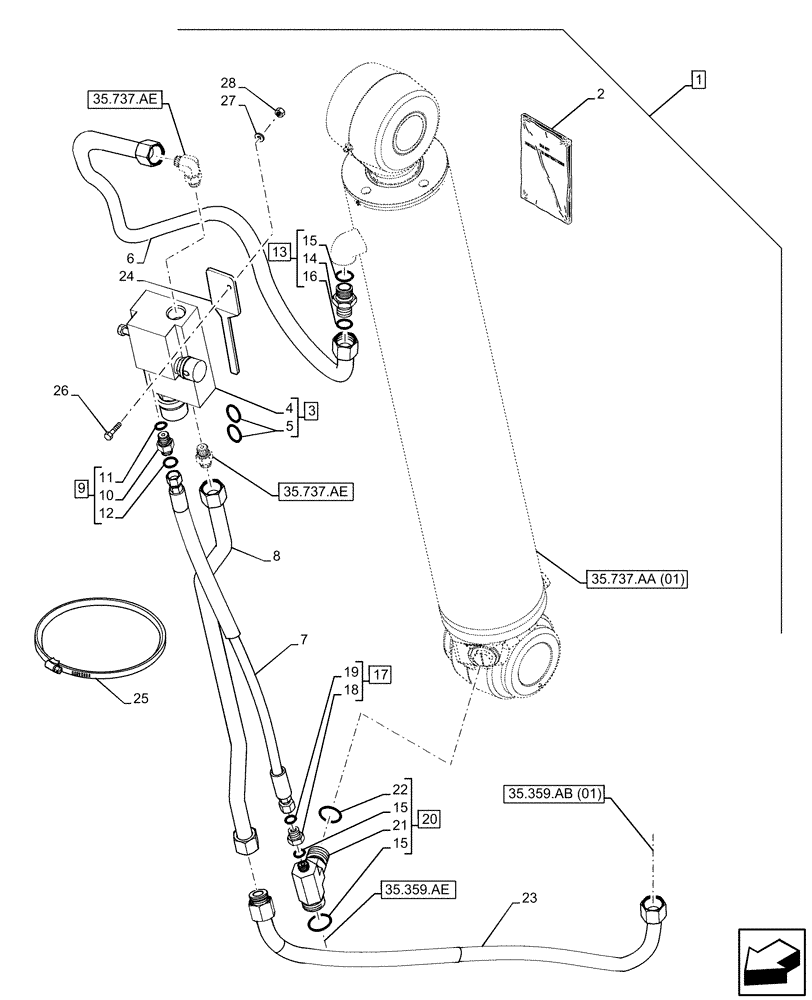

Запчасти Case 580N EP (88.100.35[36]) - DIA KIT, DIPPER, LOCK VALVE (88) - ACCESSORIES

1

84588432

CONSTRUCTION DIA

Dipper Lock Valve, Incl 2 - 28

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

84588443

INSTRUCTION

1шт.

3

87353314

SAFETY VALVE

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Valve, Incl in 3

1шт.

5

85820913

SEAL KIT

1шт.

6

84537738

HYD TUBE

Dipper Lock Valve, Cylinder

1шт.

7

84574638

HYDRAULIC HOSE,6.3mm ID x 870mm L

6.3mm ID x 870mm L, Dipper Lock Valve, Pilot Control

1шт.

8

84537732

HYD TUBE

Dipper Lock Valve, Inlet

1шт.

9

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

ASSY, Incl 14, 15 (Qty 1), 16

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

1шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

84522377

REDUCER

ASSY, Incl 18, 19

1шт.

18

NSS

NOT SOLD SEPARAT

Reducer, Incl in 17

1шт.

19

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

20

87681197

HYD CONNECTOR

ASSY, Incl 15 (Qty 2), 21, 22

1шт.

21

NSS

NOT SOLD SEPARAT

Tee, Incl in 20

1шт.

22

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

84574589

HYDRAULIC HOSE,16mm ID x 2050mm L

16mm ID x 2050mm L, Dipper Lock Valve, Pilot Control

1шт.

24

84558826

BRACKET

1шт.

25

214-3196

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

1шт.

26

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

27

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

1шт.

28

9706690

NUT,M8 x 1.25, Cl 8

1шт.
