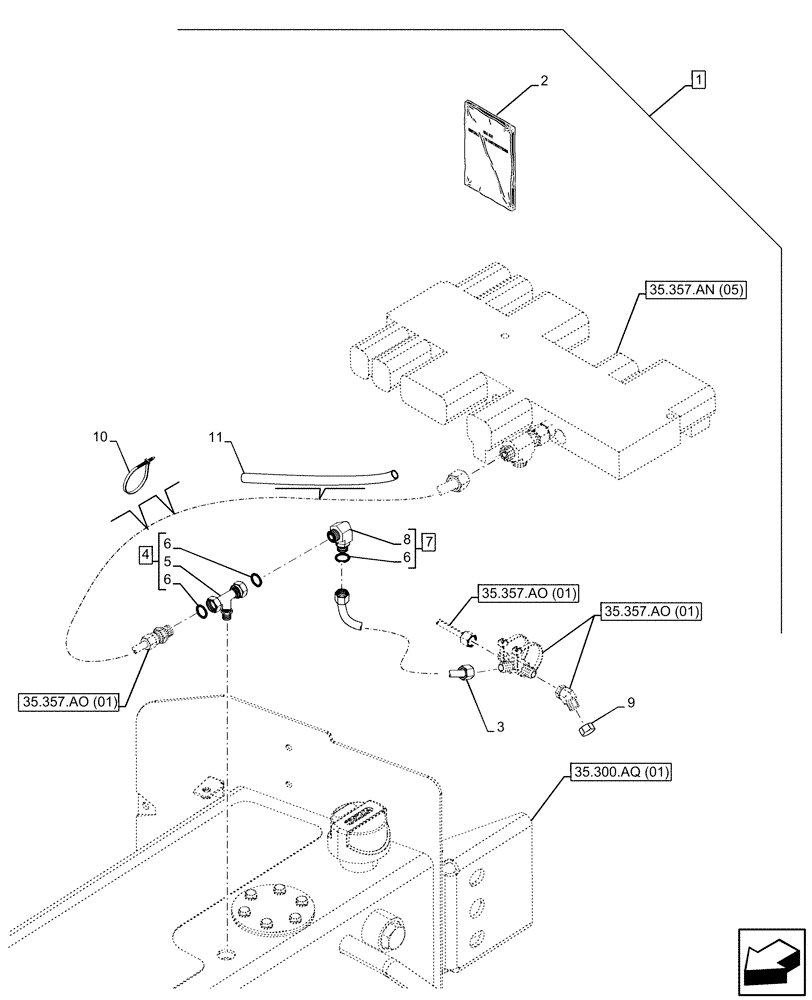

Запчасти Case 580N EP (88.100.35[35]) - DIA KIT, FIELD SERVICE TLB PLT VIBRATION (88) - ACCESSORIES

1

84222040

CONSTRUCTION DIA

Field Service TLB PLT Vibration

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

84376315

INSTRUCTION

1шт.

3

84222041

HOSE,10mm ID x 1650mm L

10mm ID x 1650mm L, Pilot Control Return

1шт.

4

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 5, 6 (Qty 2)

1шт.

5

NSS

NOT SOLD SEPARAT

Tee, Incl in 4

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

7

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

ASSY, Incl 6 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 7

1шт.

9

218-754

CAP,37 Degree, 9/16"-18

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

11

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

19mm ID x 24.23mm OD x 450mm L

1шт.
