(88.100.35[22]) - DIA KIT, UNI-AUX TO COMBO, EHOE, PC

Запчасти Case 580N EP (88.100.35[22]) - DIA KIT, UNI-AUX TO COMBO, EHOE, PC (88) - ACCESSORIES

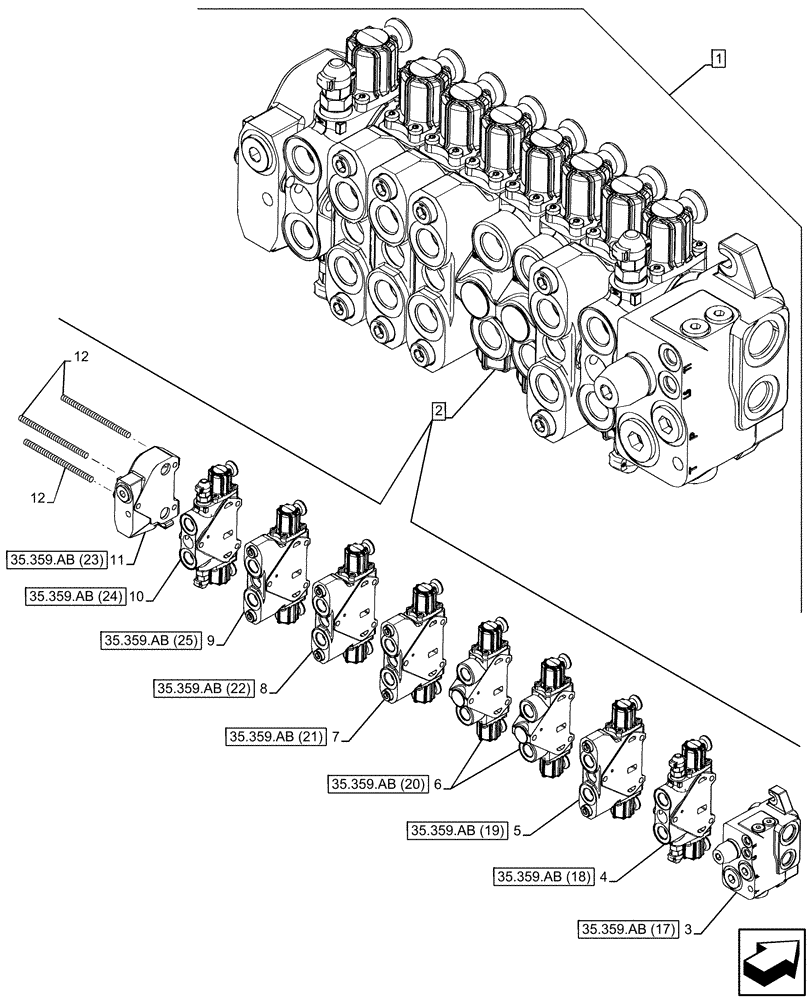

Схема запчастей Case 580N EP - (88.100.35[22]) - DIA KIT, UNI-AUX TO COMBO, EHOE, PC (88) - ACCESSORIES
35.359.ab (25)
6
7
12
9
12
5
10
2
4
8
3
11
1
35.359.ab (24)
35.359.ab (19)
35.359.ab (21)
35.359.ab (20)
35.359.ab (23)
35.359.ab (22)
35.359.ab (17)
35.359.ab (18)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47662029

CONSTRUCTION DIA

Uni-Aux to Combo, EHOE, PC, Incl 2 - 12

1шт.

2

84551844

CONTROL VALVE

ASSY, Backhoe 8 Spool, Pilot Control, Incl 3 - 12

1шт.

3

84278712

HYD VALVE SECTION

Inlet, ASSY

1шт.

4

84586031

HYD VALVE SECTION

Swing, ASSY

1шт.

5

84278714

HYD VALVE SECTION

Boom, ASSY

1шт.

5

84278714R

REMAN-HYD VALVE

Reman Valve - Boom

1шт.

5

84278714C

CORE-VALVE HYD

Core Return Number

1шт.

6

84157939

HYD VALVE SECTION

Stabilizer, ASSY

2шт.

7

84278710

HYD VALVE SECTION

Dipper, ASSY

1шт.

8

84278702

HYD VALVE SECTION

Backhoe Bucket, ASSY

1шт.

9

84278692

HYD VALVE SECTION

Extendable Dipper, ASSY

1шт.

10

84278691

HYD VALVE SECTION

BI-DIR Pilot, ASSY

1шт.

11

85811915

HYD VALVE SECTION

Outlet, ASSY

1шт.

12

87447477

SET OF PARTS

3шт.
