Запчасти Case 580N EP (88.100.35[21]) - DIA KIT, UNI-AUX TO COMBO, EHOE, PC (88) - ACCESSORIES

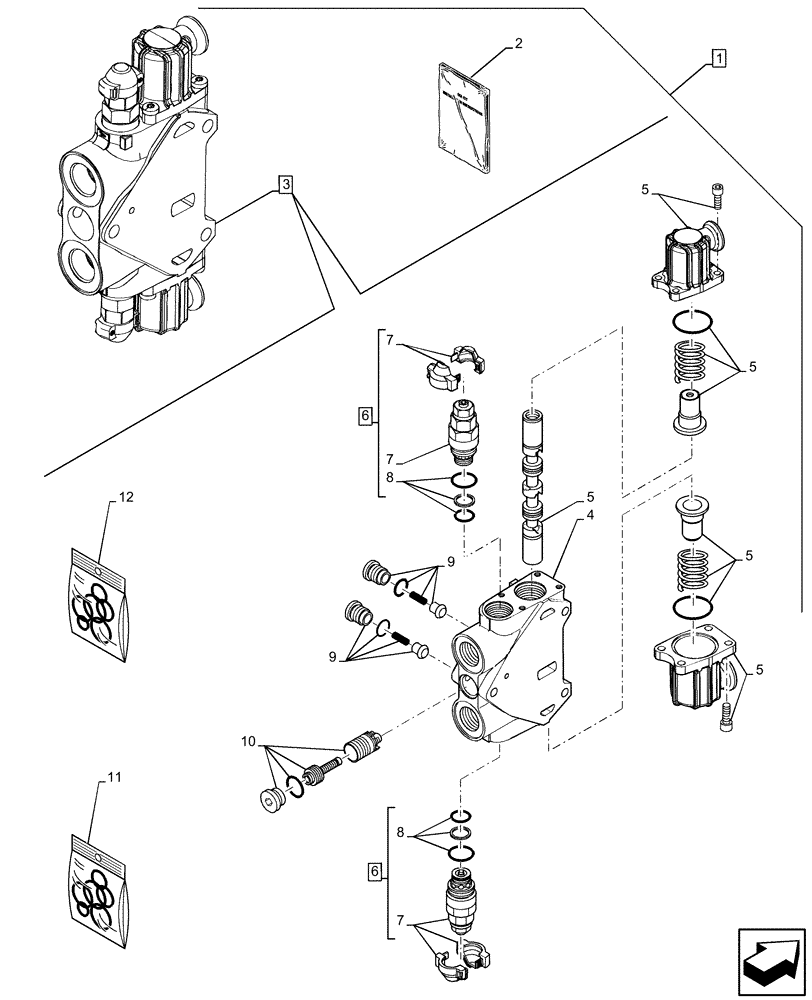

Схема запчастей Case 580N EP - (88.100.35[21]) - DIA KIT, UNI-AUX TO COMBO, EHOE, PC (88) - ACCESSORIES
7
8
1
6
5
9
7
6
11
9
12
2
5
8
4
7
5
5
10
3
5

Артикул

Название

Примечание

Количество

1

47662029

CONSTRUCTION DIA

Uni-Aux to Combo, Ehoe, PC, Incl 2 - 12

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

47662032

INSTRUCTION

1шт.

3

84278691

HYD VALVE SECTION

ASSY, Bi-Dir Pilot Control, Incl 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.

5

85826344

KIT,Operation

1шт.

6

85812115

VALVE PRESSURE RELIE

ASSY, Maximum 220 bar, Incl 7, 8

2шт.

7

NSS

NOT SOLD SEPARAT

Valve, Incl in 6

2шт.

8

85811933

SEAL KIT,Secondary Valve

2шт.

9

85811938

KIT,Check Valve

2шт.

10

85819378

KIT

Compensator

1шт.

11

85824281

SEAL KIT,Control Valve Section, Complete

1шт.

12

85819148

SEAL KIT,Between Control Valve Sections

1шт.

Выбрано товаров: 13
