(88.100.35[20]) - DIA KIT, NO AUX TO COMBO, STD, PC

Запчасти Case 580N EP (88.100.35[20]) - DIA KIT, NO AUX TO COMBO, STD, PC (88) - ACCESSORIES

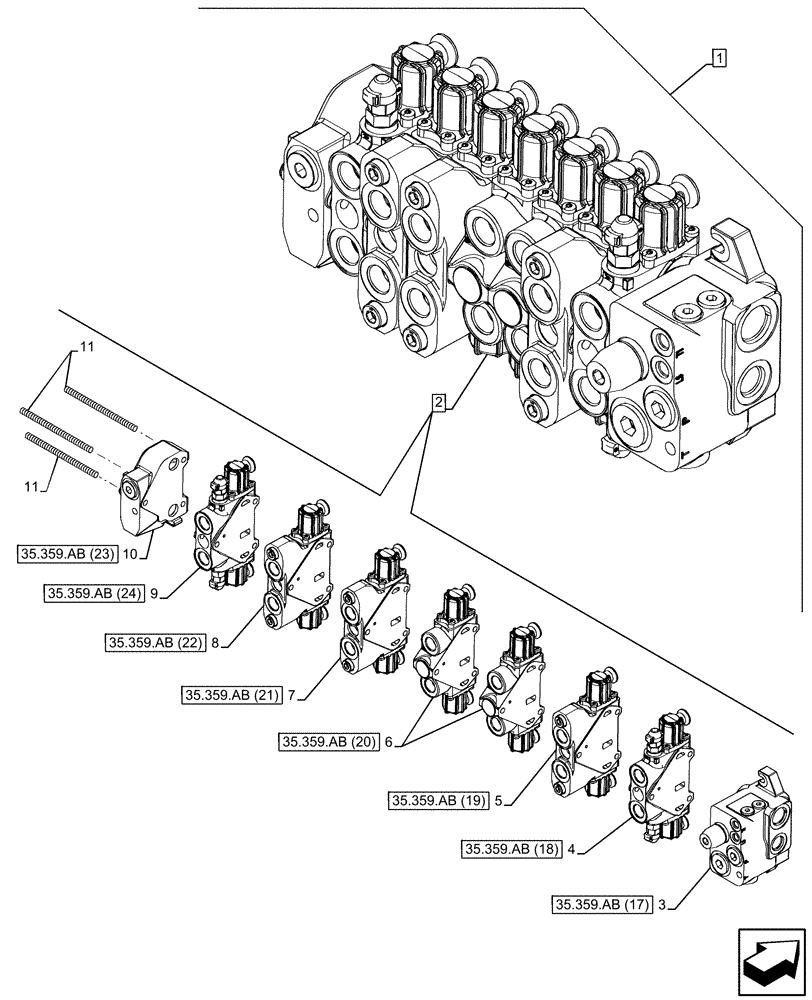

Схема запчастей Case 580N EP - (88.100.35[20]) - DIA KIT, NO AUX TO COMBO, STD, PC (88) - ACCESSORIES
35.359.ab (18)
1
6
8
10
11
7
9
4
11
2
5
3
35.359.ab (24)
35.359.ab (19)
35.359.ab (21)
35.359.ab (20)
35.359.ab (23)
35.359.ab (22)
35.359.ab (17)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47661834

CONSTRUCTION DIA

No Aux to Combo, STD, PC, Incl 9, 11

1шт.

2

84551842

CONTROL VALVE

ASSY, Backhoe 7 Spool Pilot Control, Incl 3 - 11

1шт.

3

84278712

HYD VALVE SECTION

Inlet, ASSY

1шт.

4

84586031

HYD VALVE SECTION

Swing, ASSY

1шт.

5

84278714

HYD VALVE SECTION

Boom, ASSY

1шт.

5

84278714R

REMAN-HYD VALVE

Reman Valve - Boom

1шт.

5

84278714C

CORE-VALVE HYD

Core Return Number

1шт.

6

84157939

HYD VALVE SECTION

Stabilizer ASSY

2шт.

7

84278710

HYD VALVE SECTION

Dipper, ASSY

1шт.

8

84278702

HYD VALVE SECTION

Bucket, ASSY

1шт.

9

84278691

HYD VALVE SECTION

BI-DIR Pilot, ASSY

1шт.

10

85811915

HYD VALVE SECTION

Outlet, ASSY

1шт.

11

87751102

BOLT

3шт.
