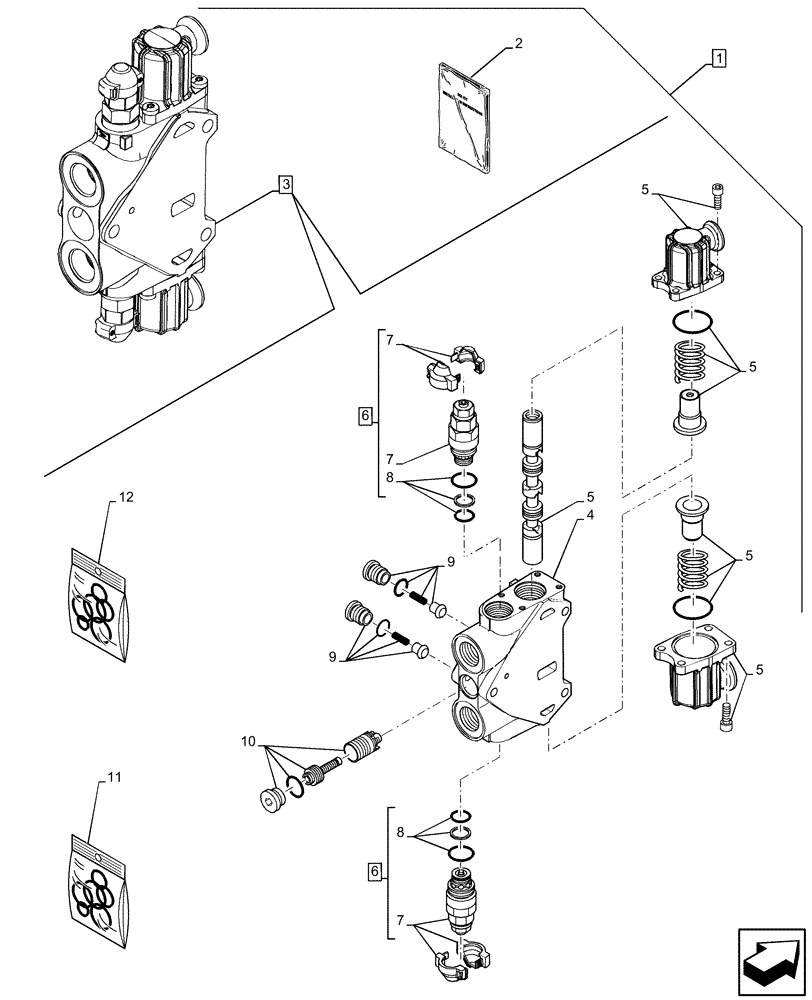

Запчасти Case 580N EP (88.100.35[19]) - DIA KIT, NO AUX TO COMBO, STD, PC (88) - ACCESSORIES

1

47661834

CONSTRUCTION DIA

No Aux to Combo, STD, PC, Incl 2 - 12

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

47661836

INSTRUCTION

1шт.

3

84278691

HYD VALVE SECTION

ASSY, Bi-Dir Pilot Control, Incl 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.

5

85826344

KIT,Operation

1шт.

6

85812115

VALVE PRESSURE RELIE

ASSY, Maximum 220 bar, Incl 7, 8

2шт.

7

NSS

NOT SOLD SEPARAT

Valve, Incl in 6

2шт.

8

85811933

SEAL KIT,Secondary Valve

2шт.

9

85811938

KIT,Check Valve

2шт.

10

85819378

KIT

Compensator

1шт.

11

85824281

SEAL KIT,Control Valve Section, Complete

1шт.

12

85819148

SEAL KIT,Between Control Valve Sections

1шт.
