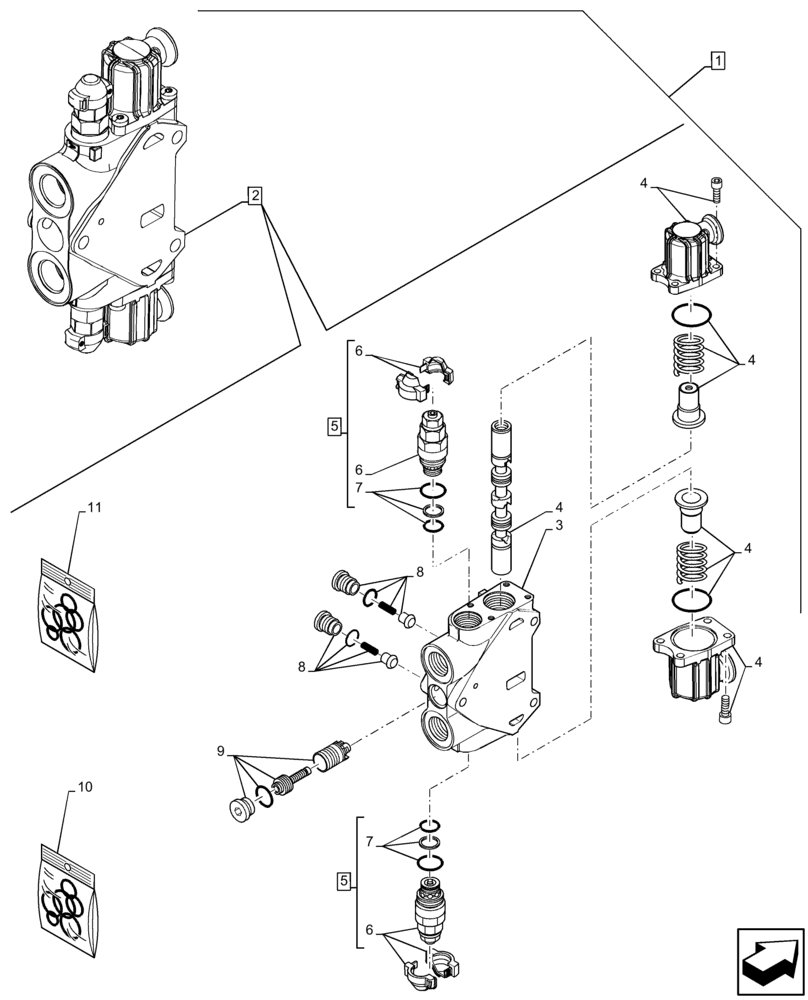

Запчасти Case 580N EP (88.100.35[16]) - DIA KIT, NO AUX TO COMBO, EHOE, PC (88) - ACCESSORIES

1

47501547

CONSTRUCTION DIA

No Aux to Combo, EHOE, PC, Incl 2 - 11

1шт.

2

84278691

HYD VALVE SECTION

ASSY, Bi-Dir Pilot Control, Incl 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.

4

85826344

KIT,Operation

1шт.

5

85812115

VALVE PRESSURE RELIE

ASSY, Maximum 220 bar, Incl 6, 7

2шт.

6

NSS

NOT SOLD SEPARAT

Valve, Incl in 5

2шт.

7

85811933

SEAL KIT,Secondary Valve

2шт.

8

85811938

KIT,Check Valve

2шт.

9

85819378

KIT

Compensator

1шт.

10

85824281

SEAL KIT,Control Valve Section, Complete

1шт.

11

85819148

SEAL KIT,Between Control Valve Sections

1шт.
