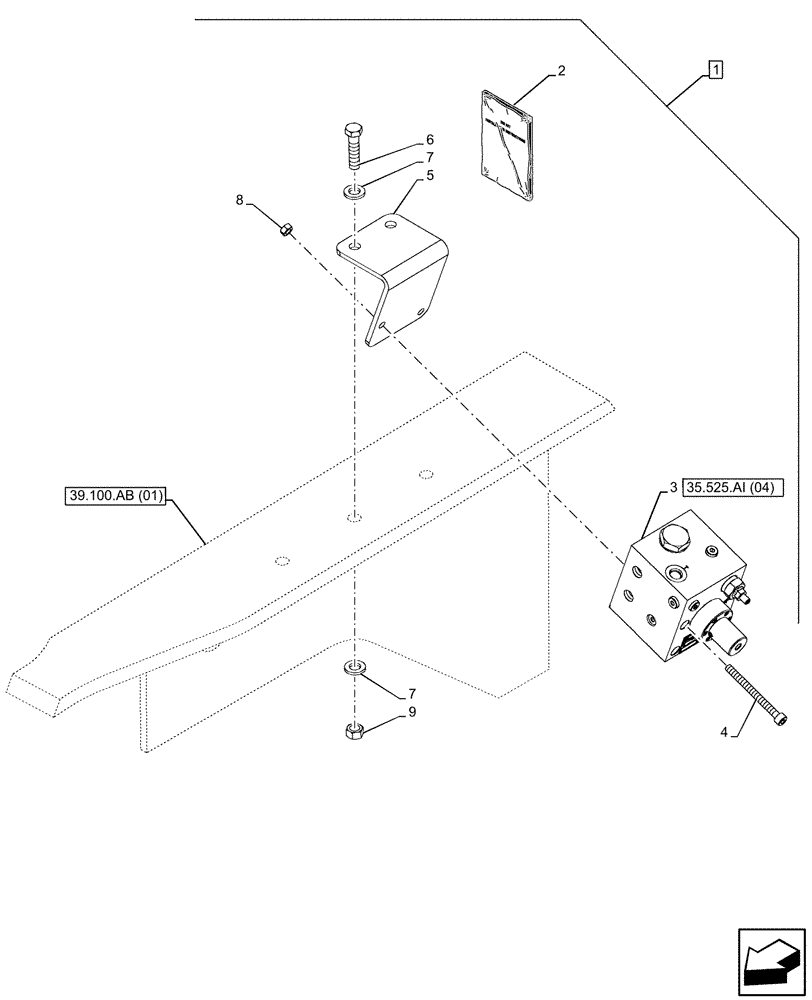

Запчасти Case 580N EP (88.100.35[14]) - DIA KIT, NO AUX TO COMBO, EHOE, PC (88) - ACCESSORIES

1

47501547

CONSTRUCTION DIA

No Aux to Combo, EHOE, PC, Incl 2 - 9

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

47613699

REPAIR KIT

1шт.

3

84247110

VALVE

Closed Center, UNI-AUX

1шт.

4

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

5

84257782

BRACKET

Backhoe AUX Valve Mounting

1шт.

6

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

7

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

8

43362

NUT,M8 x 1.25, Cl 10

2шт.

9

337475

NUT,M12, Cl 10

2шт.
