Запчасти Case 580N EP (88.100.35[09]) - DIA KIT, NO AUX TO COMBO, STD, PC (88) - ACCESSORIES

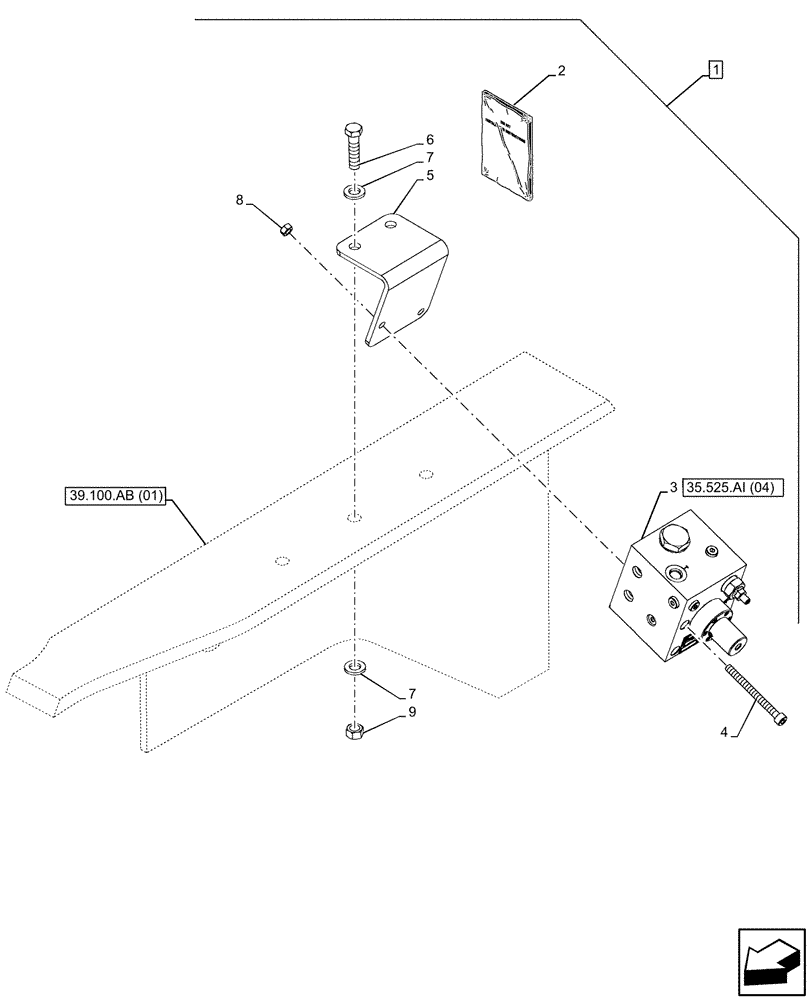

Схема запчастей Case 580N EP - (88.100.35[09]) - DIA KIT, NO AUX TO COMBO, STD, PC (88) - ACCESSORIES
39.100.ab (01)
1
6
8
3
5
4
7
2
7
9
35.525.ai (04)

Артикул

Название

Примечание

Количество

1

47501545

CONSTRUCTION DIA

No Aux to Combo, STD, PC, Incl 2 - 9

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

47607739

INSTRUCTION

1шт.

3

84247110

VALVE

Closed Center, UNI-AUX

1шт.

4

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

5

84257782

BRACKET

Backhoe AUX Valve Mounting

1шт.

6

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

7

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

8

43362

NUT,M8 x 1.25, Cl 10

2шт.

9

337475

NUT,M12, Cl 10

2шт.

Выбрано товаров: 10
