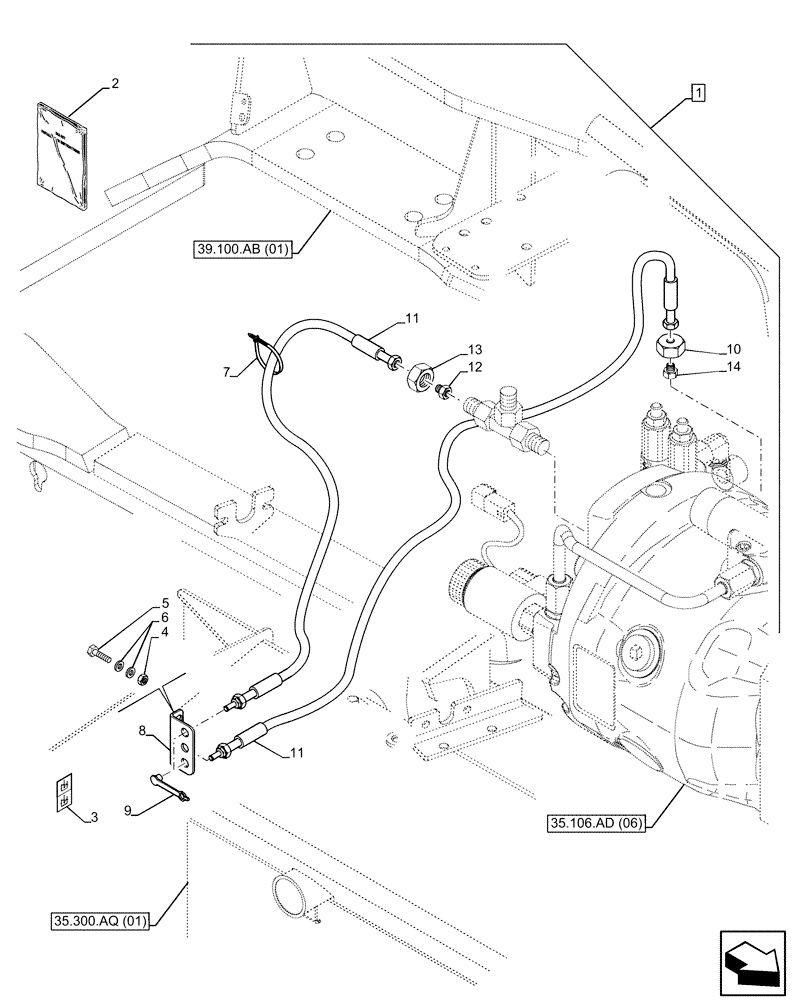

Запчасти Case 580N EP (88.100.35[02]) - DIA KIT, REMOTE DIAGNOSTICS - MECHANICAL CONTROL (88) - ACCESSORIES

1

84559932

KIT

Remote Diagnostics, Mechanical Control, Incl 2 - 14

1шт.

Refer to installation Instructions P/N for Correct Assembly Procedure

1шт.

2

84560325

INSTRUCTION

1шт.

3

84559935

DECAL

1шт.

4

9706690

NUT,M8 x 1.25, Cl 8

2шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.

8

84559538

BULKHEAD

1шт.

9

H434163

DUST CAP

2шт.

10

86639096

TUBE NUT,1-3/16'-12 ORFS x 26.5mm Thk

2шт.

11

84559533

HYDRAULIC HOSE

2шт.

12

87388776

ADAPTER,13/16" - 16

1шт.

13

86639094

HYD CONNECTOR,Hex, 13/16-16 ORFS x 20mm L

1шт.

14

87530414

REDUCER

2шт.
