Запчасти Case 580N EP (88.100.10[04]) - DIA KIT, HIGH AMBIENT (88) - ACCESSORIES

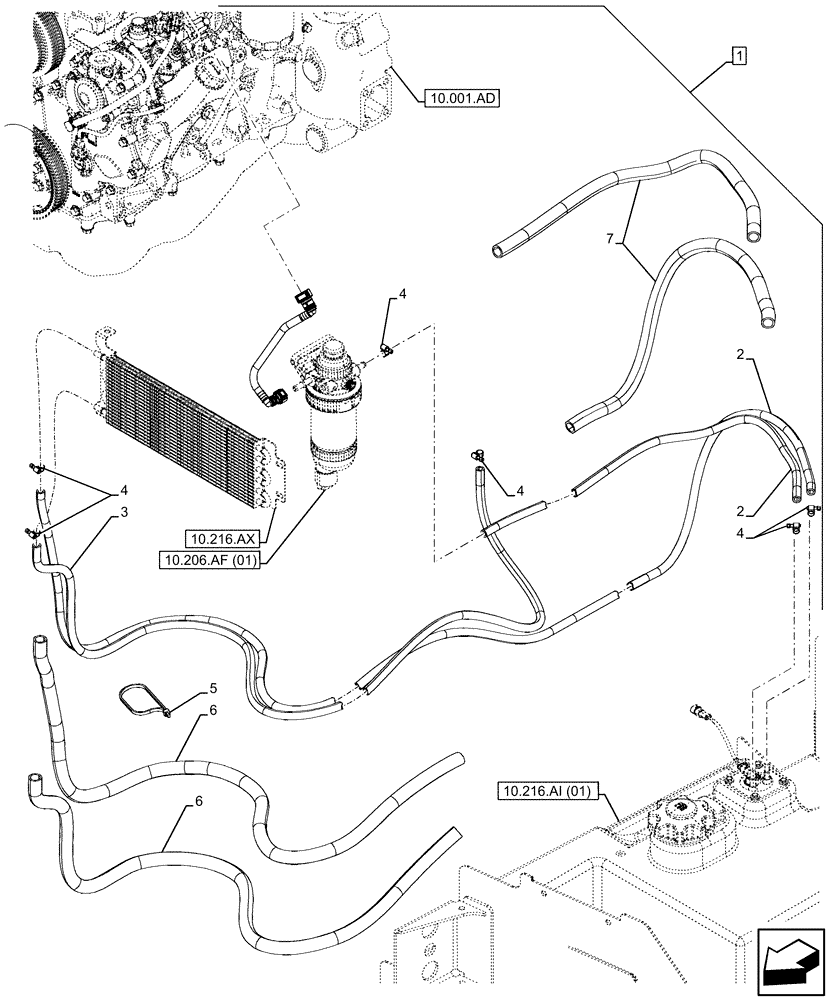

Схема запчастей Case 580N EP - (88.100.10[04]) - DIA KIT, HIGH AMBIENT (88) - ACCESSORIES
10.216.ai (01)
7
4
3
6
2
5
1
6
4
2
4
4
10.216.ax
10.001.ad
10.206.af (01)

Артикул

Название

Примечание

Количество

1

47788903

CONSTRUCTION DIA

High Ambient, Incl 1-7

1шт.

2

47589005

FUEL HOSE,9.5mm ID x 2770mm L

Fuel, line return - Cooler to Tank

1шт.

3

47589006

FUEL HOSE,9.5mm ID x 1700mm L

Fuel, line Suction - Eng to Cooler

1шт.

4

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

Clamp

4шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

Cable tie, replaced By 87438046

1шт.

6

47611880

HOSE PROTECTION,19mm ID x 1105mm L

Guard, Hose

2шт.

7

84249061

HOSE PROTECTION,19mm ID x 820mm L

Guard, Hose

2шт.

Выбрано товаров: 7
