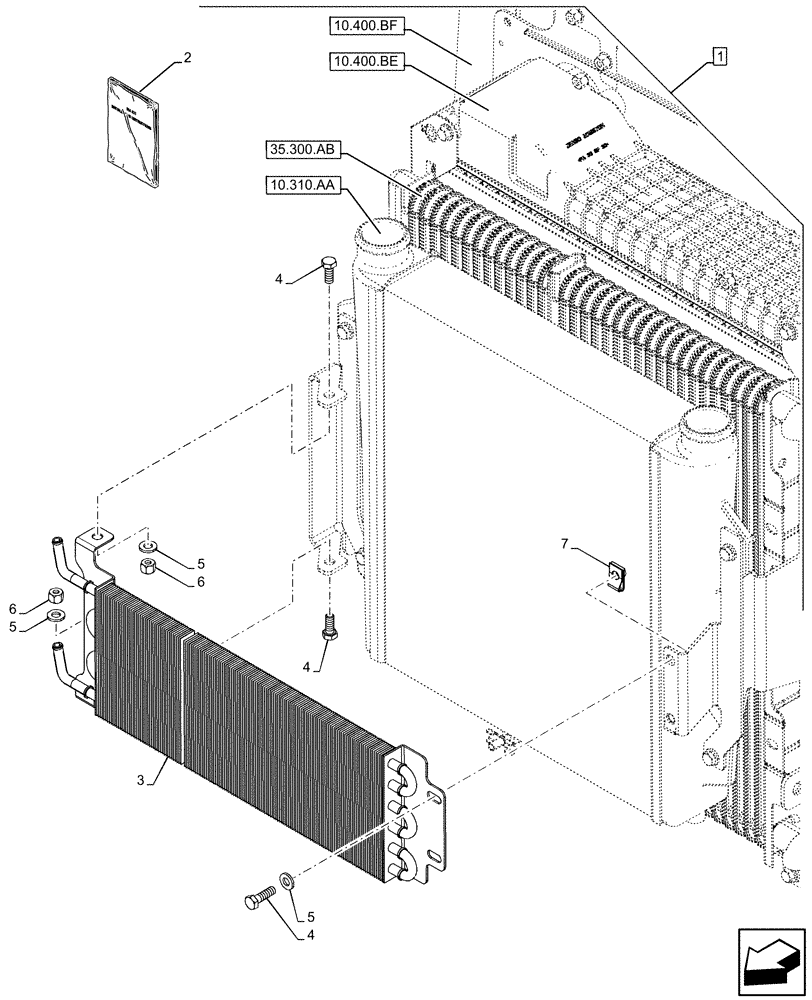

Запчасти Case 580N EP (88.100.10[01]) - DIA KIT, HIGH AMBIENT (88) - ACCESSORIES

1

47788903

CONSTRUCTION DIA

High Ambient, Incl 1-7

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

47788905

INSTRUCTION

1шт.

3

47689746

FUEL COOLER

Cooler, Fuel

1шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

Bolt, Replaced by 12014

8шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

Washer, M8, 8.8x17.5x2.2 HTS Boron ZNM

10шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

Nut, Prev Torque, Replaced by 412250

2шт.

7

833-40408

NUT,M8, U

Nut, Spring, Replaced by 86625074

6шт.
