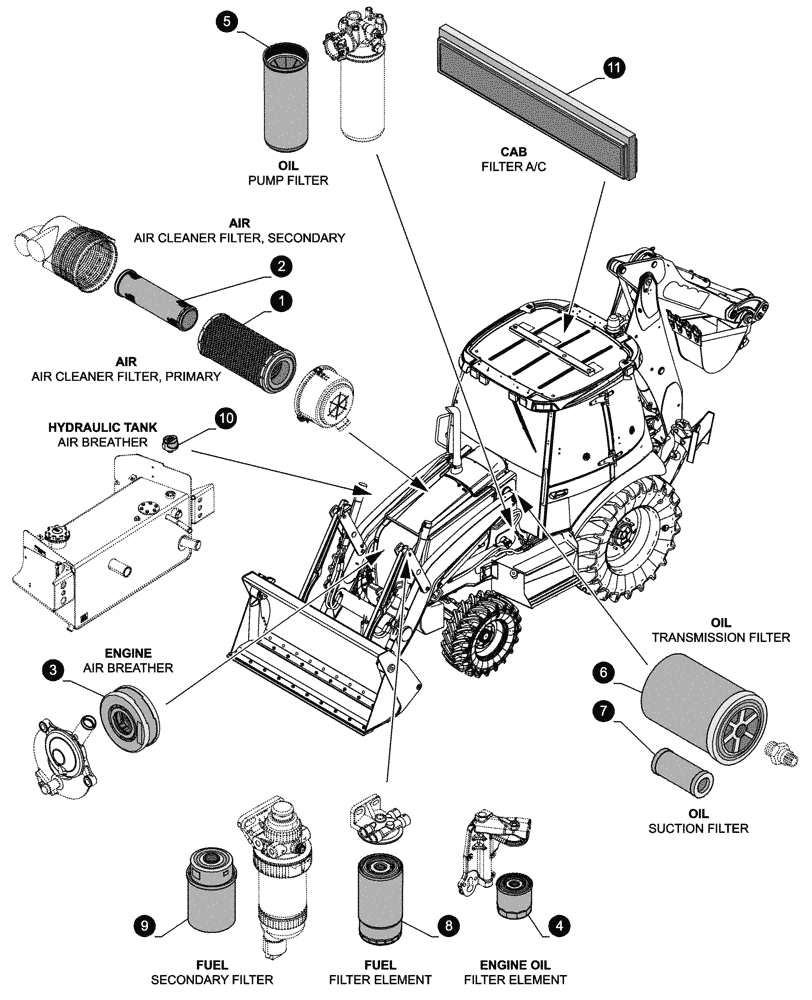

Запчасти Case 580N EP (05.100.04[01]) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE

1

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary, Every 1000 hours

1шт.

2

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary, Every 1000 hours

1шт.

3

5801686484

FILTER

Engine Breather / Blow-by, Every 1500 hours

1шт.

4

47535939

ENGINE OIL FILTER,97.5mm OD x 92mm L, M27 x 2, 30 Micron

Every 500 hours

1шт.

5

47668040

HYDRAULIC OIL FILTER

Hydraulic Pump, Initial 100 hours & then every 1000 hours

1шт.

6

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Hydraulic Oil, Transmission, Initial 100 hours & then every 1000 hours

1шт.

7

278534A1

FILTER SCREEN

Transmission Oil / Suction, Initial 100 hours & then every 1000 hours

1шт.

8

5801477167

FILTER CARTRIDGE

Fuel, on Engine, Initial 100 hours & then every 500 hours

1шт.

9

84565926

FUEL FILTER,20.6mm ID x 85mm OD x 154.3mm L, W/ Water Drain

Secondary, W/ WIF Sensor, Initial 100 hours & then every 500 hours

1шт.

10

84329587

BREATHER

Hydraulic Tank, Every 1000 hors

1шт.

11

360260A2

CAB FILTER,A/C, 740mm L x 140.4mm W x 50mm Thk, Pleatloc

Fresh Air, Recirculation

1шт.
