(84.912.AC[01]) - VAR - 423076 - EXTENDABLE DIPPER, HYDRAULIC COUPLER, BACKHOE ARM

Запчасти Case 580N EP (84.912.AC[01]) - VAR - 423076 - EXTENDABLE DIPPER, HYDRAULIC COUPLER, BACKHOE ARM (84) - BOOMS, DIPPERS & BUCKETS

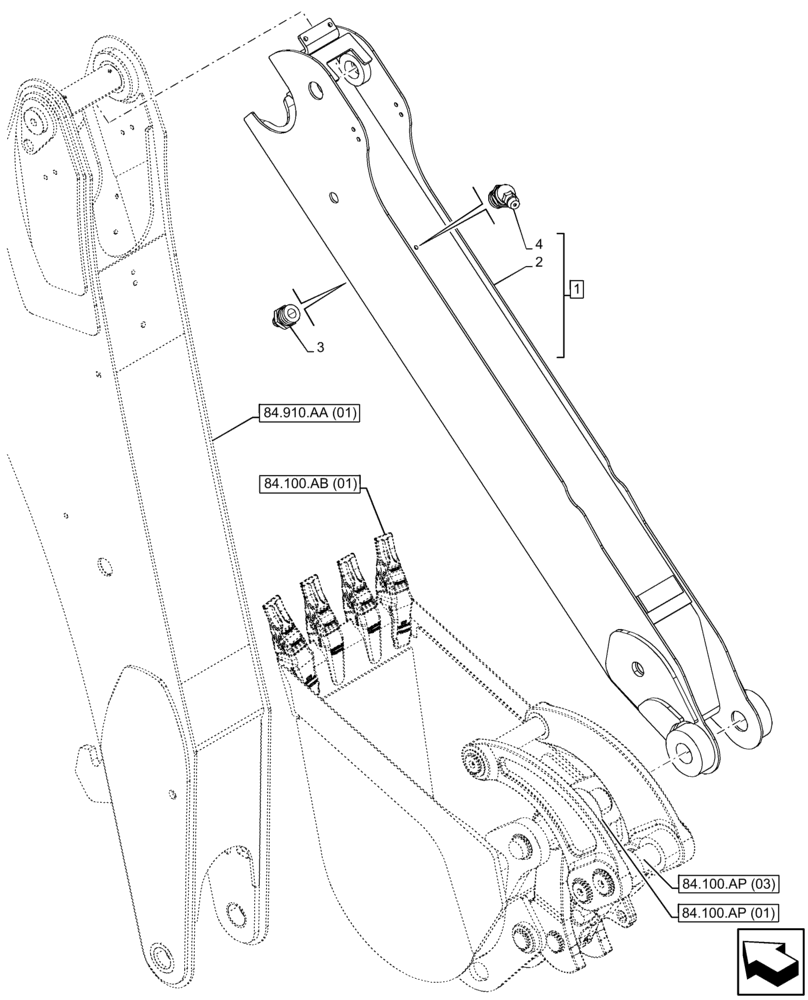

Схема запчастей Case 580N EP - (84.912.AC[01]) - VAR - 423076 - EXTENDABLE DIPPER, HYDRAULIC COUPLER, BACKHOE ARM (84) - BOOMS, DIPPERS & BUCKETS
84.910.aa (01)
3
84.100.ab (01)
1
2
84.100.ap (01)
84.100.ap (03)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47592729

DIPPER

ASSY, Mobile Arm, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Dipper, Incl in 1

1шт.

3

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

4

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

1шт.
