(84.114.AF) - BOOM SWING, TOWER

Запчасти Case 580N EP (84.114.AF) - BOOM SWING, TOWER (84) - BOOMS, DIPPERS & BUCKETS

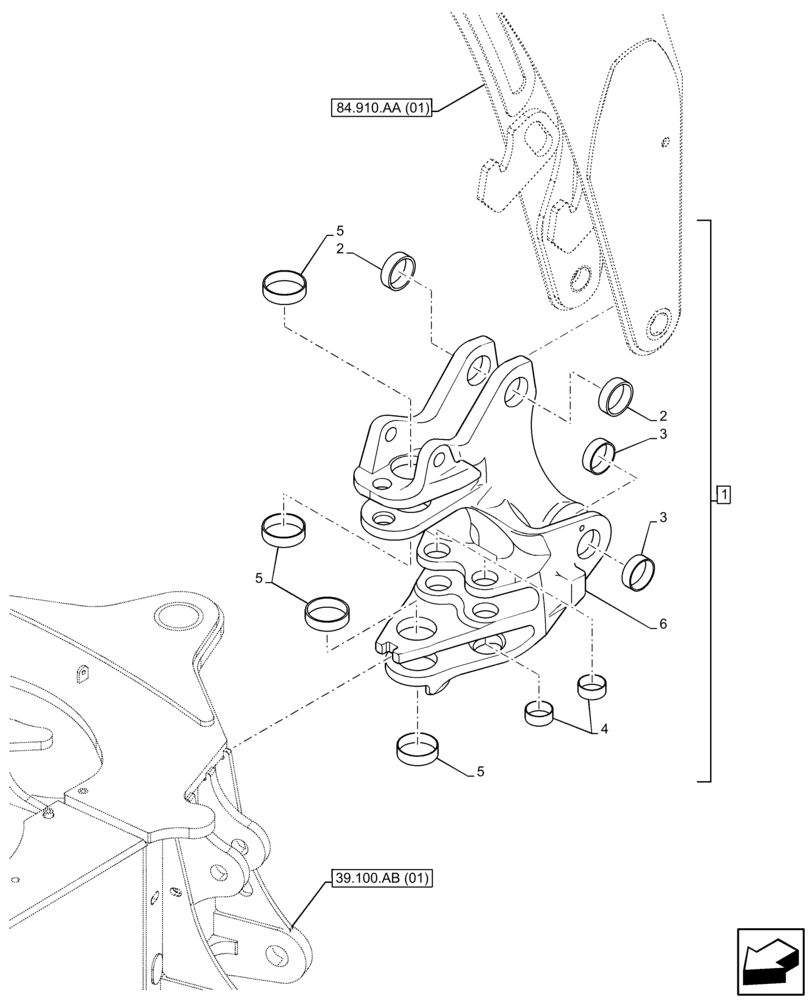

Схема запчастей Case 580N EP - (84.114.AF) - BOOM SWING, TOWER (84) - BOOMS, DIPPERS & BUCKETS
2
5
2
39.100.ab (01)
4
3
5
5
6
1
3
84.910.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47557261

TOWER

Swing, ASSY, Incl 2 - 6

1шт.

2

84230813

BUSHING,60.19mm ID x 70mm OD x 36mm L

2шт.

3

84326988

BUSHING,60.19mm ID x 80mm OD x 24mm L

4шт.

4

135249A1

BUSHING,50.96mm ID x 63.5mm OD x 28.6mm L

4шт.

5

84235607

BUSHING,80mm ID x 96mm OD x 30mm L

4шт.

6

NSS

NOT SOLD SEPARAT

Swing Tower, Incl in 1

1шт.

Выбрано товаров: 6
