Запчасти Case 580N EP (84.100.AP[06]) - BACKHOE BUCKET, LINK STRAIGHT (84) - BOOMS, DIPPERS & BUCKETS

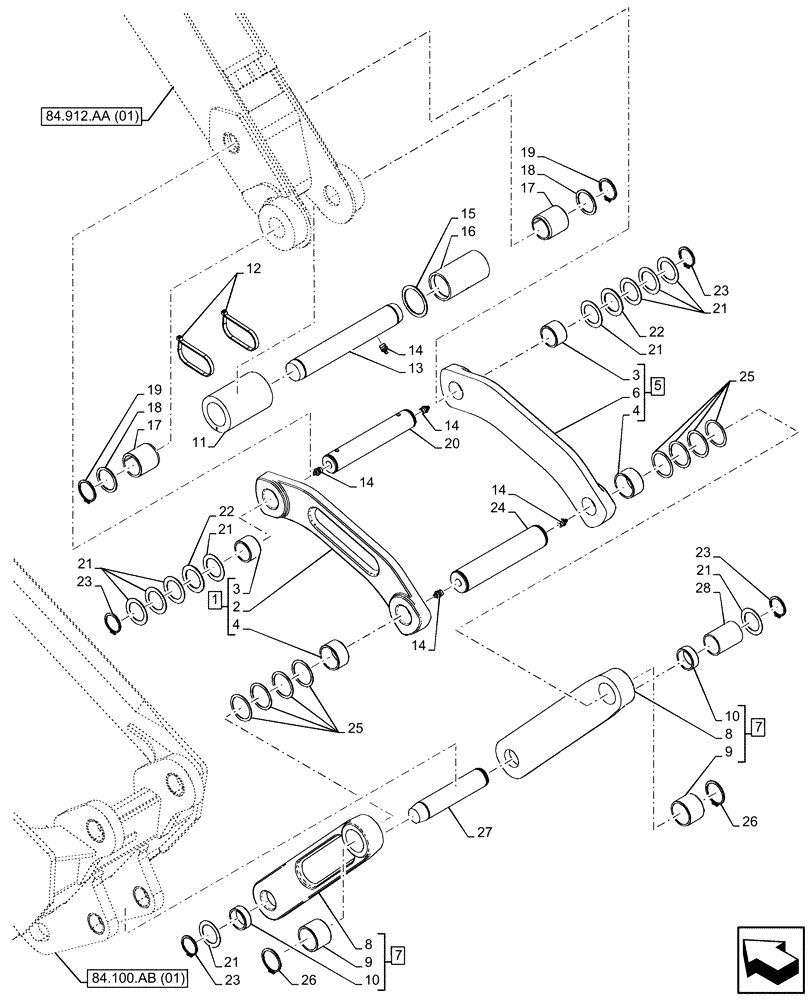

Схема запчастей Case 580N EP - (84.100.AP[06]) - BACKHOE BUCKET, LINK STRAIGHT (84) - BOOMS, DIPPERS & BUCKETS
21
10
3
6
17
17
14
9
16
25
21
7
23
22
4
23
21
26
14
21
12
18
22
27
84.912.aa (01)
7
8
14
21
20
8
19
19
2
15
21
18
10
25
23
3
14
1
14
13
24
4
5
84.100.ab (01)
11
9
23
28
26

Артикул

Название

Примечание

Количество

1

84230684

LINK ASSY.

ASSY, LH, Incl 2, 3 (Qty 1), 4 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Link, Incl in 1

1шт.

3

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

2шт.

4

84230813

BUSHING,60.19mm ID x 70mm OD x 36mm L

2шт.

5

84230685

LINK ASSY.

ASSY, LH, Incl 3 (Qty 1), 4 (Qty 1), 6

1шт.

6

NSS

NOT SOLD SEPARAT

Link, Incl in 5

1шт.

7

84230693

LINK ASSY.

ASSY, Incl 8 (Qty 1), 9 (Qty 1), 10 (Qty 1)

2шт.

8

NSS

NOT SOLD SEPARAT

Link, Incl in 7

2шт.

9

84231081

BUSHING,60.19mm ID x 70mm OD x 50mm L

2шт.

10

84231079

BUSHING,50.19mm ID x 60mm OD x 20mm L

2шт.

11

87682091

FOAM INSULATION

1шт.

12

305342A1

STRAP,450mm L

2шт.

13

84223654

PIN,55mm OD x 372.6mm L

Bucket to Dipper

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

5шт.

15

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

1шт.

16

84247140

SPACER,64.5mm ID x 79mm OD x 140mm L

1шт.

17

84247142

BUSHING,55.28mm ID x 67.55mm OD x 68mm L

2шт.

18

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

19

84233536

RING,55mm ID, Ext

2шт.

20

84171343

PIN,50mm OD x 291.76mm L

Backhoe Link

1шт.

21

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

10шт.

22

495-81282

WASHER,2 1/16" x 3" x .109"

2шт.

23

87016943

RING, SNAP,50mm ID , Ext

4шт.

24

84171217

PIN,60mm OD x 294.78mm L

Backhoe Link

1шт.

25

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

8шт.

26

84224886

RING,60mm ID, Ext

2шт.

27

84223653

PIN,50mm OD x 246.1mm L

Bucket

1шт.

28

84333098

SPACER,51mm ID x 60.8mm OD x 82mm L

1шт.

Выбрано товаров: 28
