(84.100.AM[07]) - VAR - 423063 - BUCKET, TRENCH 18INCH/457MM, BUSHING

Запчасти Case 580N EP (84.100.AM[07]) - VAR - 423063 - BUCKET, TRENCH 18INCH/457MM, BUSHING (84) - BOOMS, DIPPERS & BUCKETS

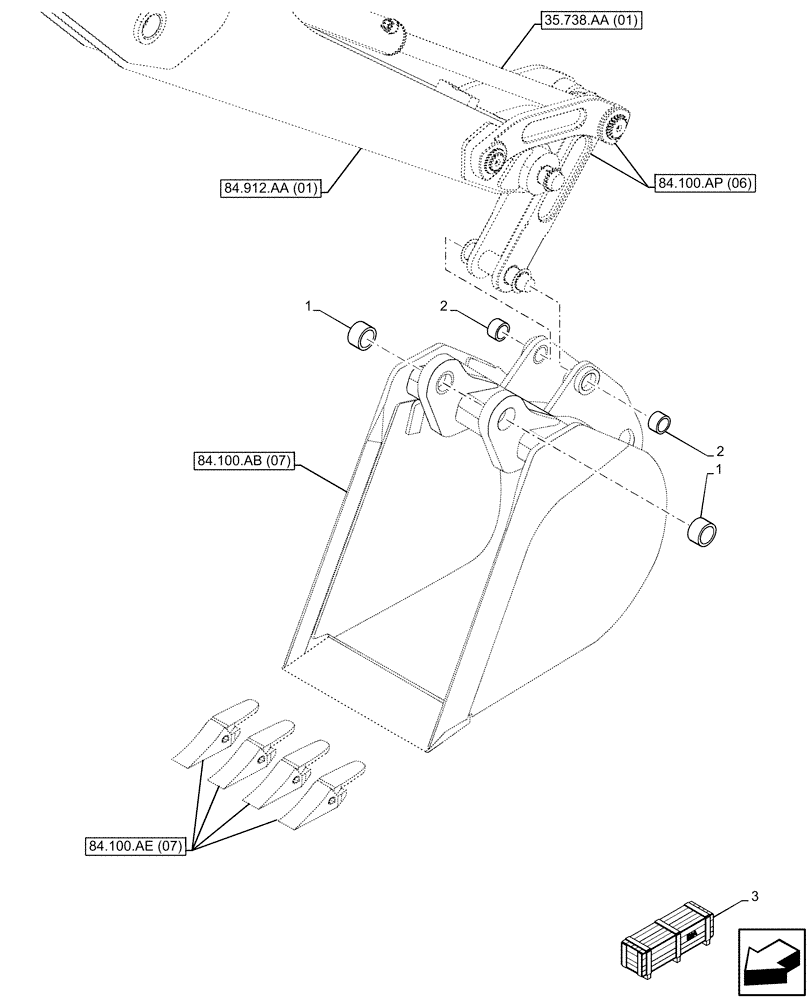

Схема запчастей Case 580N EP - (84.100.AM[07]) - VAR - 423063 - BUCKET, TRENCH 18INCH/457MM, BUSHING (84) - BOOMS, DIPPERS & BUCKETS
84.100.ae (07)
2
3
2
1
1
84.100.ap (06)
35.738.aa (01)
84.912.aa (01)
84.100.ab (07)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84244076

BUSHING,55.19mm ID x 65mm OD x 31.75mm L

2шт.

2

84244078

BUSHING,50.19mm ID x 60mm OD x 31.75mm L

2шт.

3

84467279

BUCKET

Bucket, 18 Inch GP Trenching, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 4
