(84.100.AE[08]) - VAR - 423064 - BUCKET, TRENCH 24INCH/610MM, TEETH

Запчасти Case 580N EP (84.100.AE[08]) - VAR - 423064 - BUCKET, TRENCH 24INCH/610MM, TEETH (84) - BOOMS, DIPPERS & BUCKETS

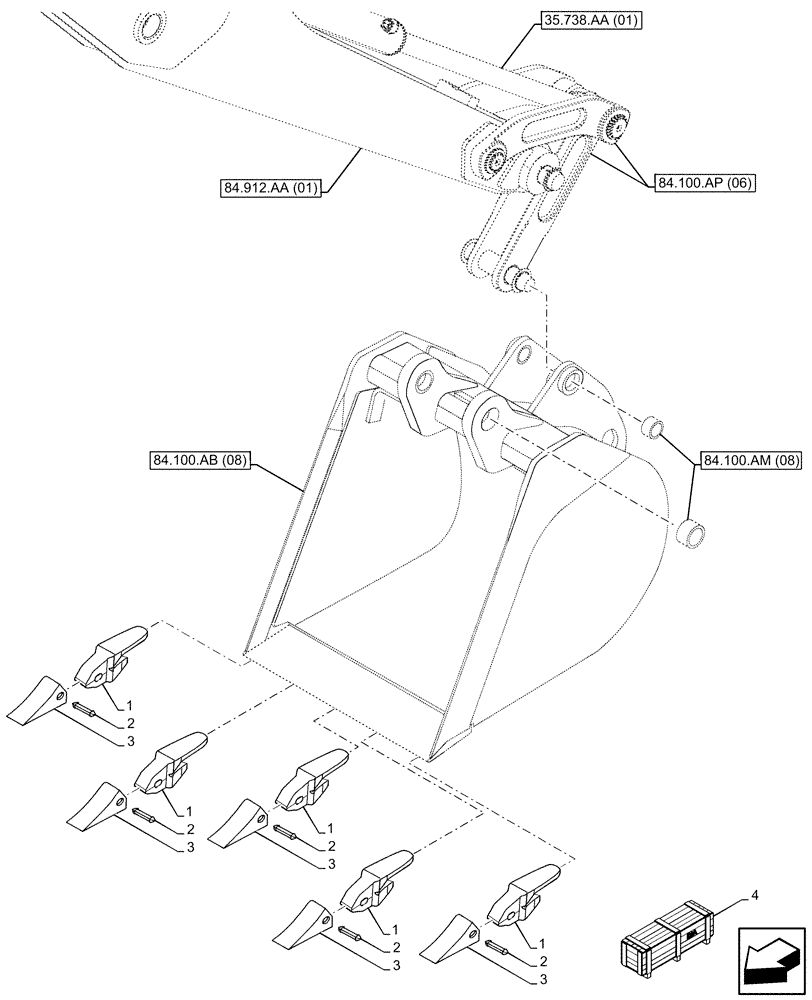

Схема запчастей Case 580N EP - (84.100.AE[08]) - VAR - 423064 - BUCKET, TRENCH 24INCH/610MM, TEETH (84) - BOOMS, DIPPERS & BUCKETS
84.100.am (08)
3
2
2
2
1
3
1
1
3
3
4
2
2
3
1
1
84.100.ap (06)
35.738.aa (01)
84.100.ab (08)
84.912.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84318731

BUCKET TOOTH SHANK

1шт.

2

84318739

BUCKET TOOTH KEY

1шт.

3

84318713

BUCKET TOOTH

1шт.

4

84467280

BUCKET

Bucket, 24 Inch GP Trenching, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 5
