(84.100.AE[07]) - VAR - 423063 - BUCKET, TRENCH 18INCH/457MM, TEETH

Запчасти Case 580N EP (84.100.AE[07]) - VAR - 423063 - BUCKET, TRENCH 18INCH/457MM, TEETH (84) - BOOMS, DIPPERS & BUCKETS

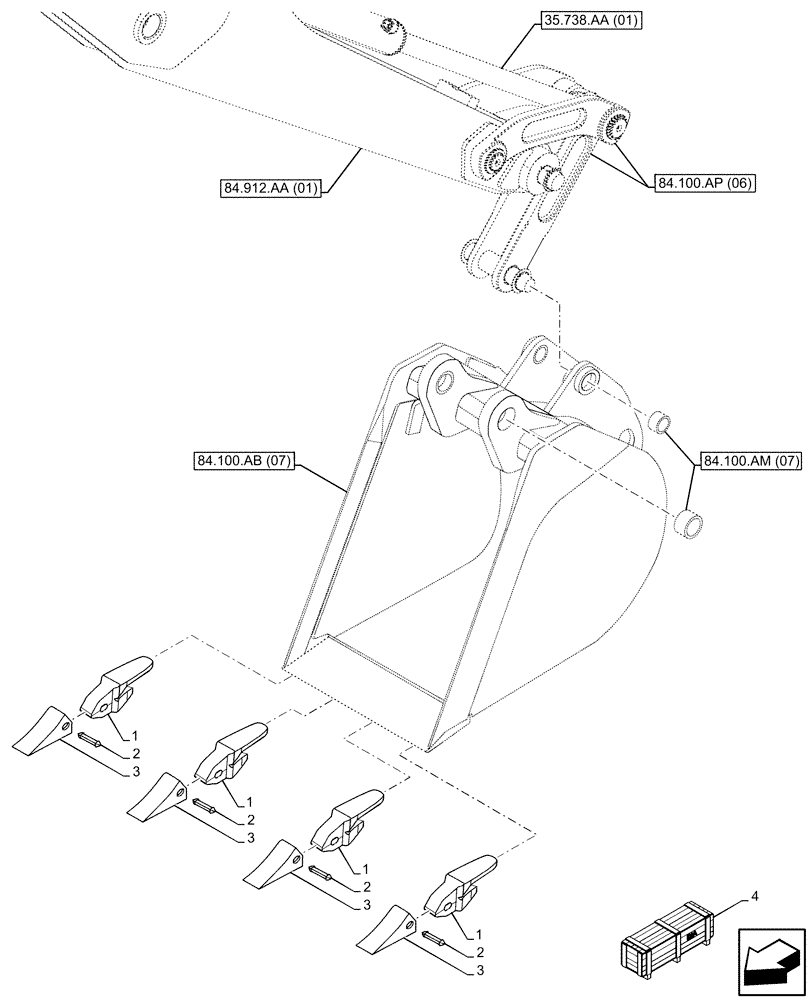

Схема запчастей Case 580N EP - (84.100.AE[07]) - VAR - 423063 - BUCKET, TRENCH 18INCH/457MM, TEETH (84) - BOOMS, DIPPERS & BUCKETS
84.100.ab (07)
2
2
3
3
1
3
1
3
2
4
1
1
2
84.100.ap (06)
35.738.aa (01)
84.100.am (07)
84.912.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84318731

BUCKET TOOTH SHANK

1шт.

2

84318739

BUCKET TOOTH KEY

1шт.

3

84318713

BUCKET TOOTH

1шт.

4

84467279

BUCKET

Bucket, 18 Inch GP Trenching, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 5
