Запчасти Case 580N EP (84.100.AB[01]) - VAR - 423066 - BUCKET, UNIVERSAL 12INCH/305MM (84) - BOOMS, DIPPERS & BUCKETS

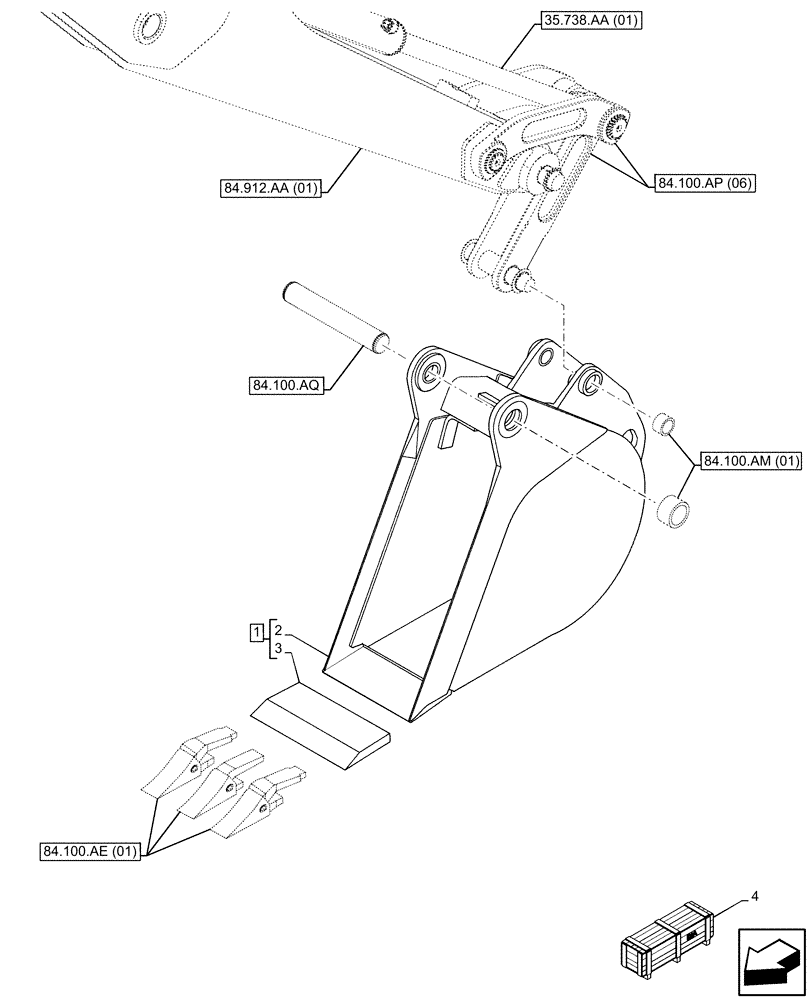

Схема запчастей Case 580N EP - (84.100.AB[01]) - VAR - 423066 - BUCKET, UNIVERSAL 12INCH/305MM (84) - BOOMS, DIPPERS & BUCKETS
84.100.aq
4
84.912.aa (01)
3
84.100.ap (06)
84.100.ae (01)
1
2
84.100.am (01)
35.738.aa (01)

Артикул

Название

Примечание

Количество

1

84416555

BUCKET,12 Inch HD

ASSY, 12in/305mm, Universal, with 3 Teeth, Incl 2, 3

1шт.

See Bucket Components also in Figure 82.100.AE (01), 82.100.AM (01), 82.100.AQ

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

D147409

EDGE, CUTTING

1шт.

4

84467272

BUCKET

Bucket, 12In Universal, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 6
