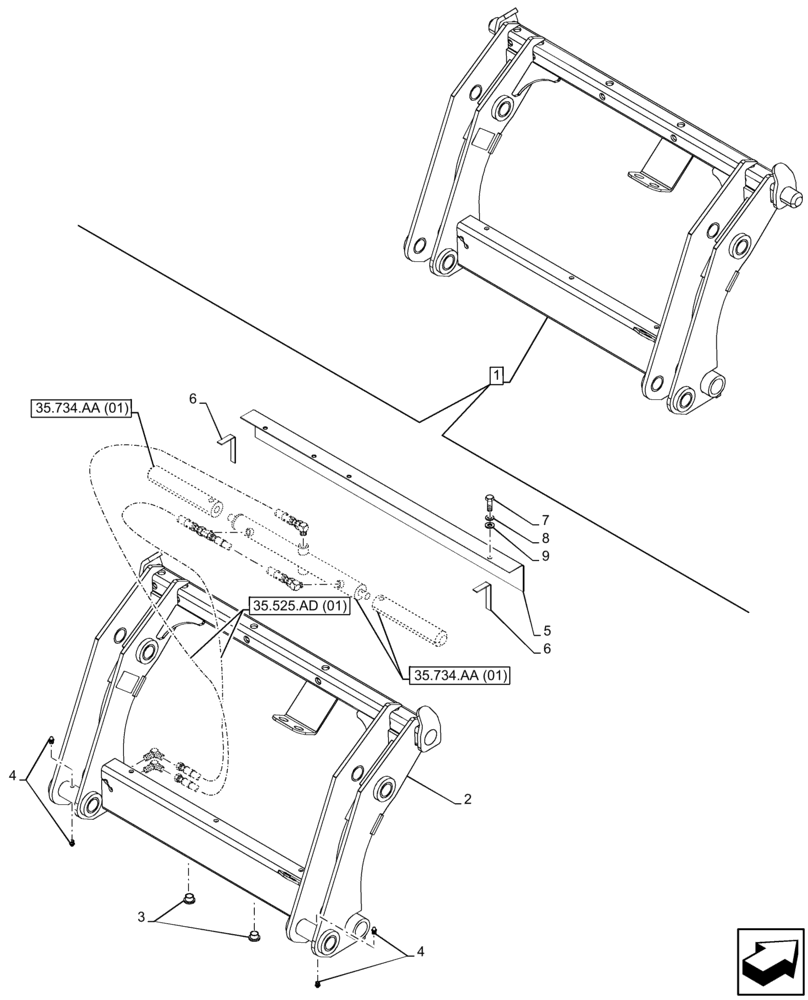

Запчасти Case 580N EP (82.300.AX[02]) - VAR - 423049 - BUCKET, QUICK COUPLER (82) - FRONT LOADER & BUCKET

1

87602620

COUPLING

ASSY, Loader with Auxiliary Hydraulic, Incl 2 - 9

1шт.

See Loader Coupler Components also in Figure 35.525.AD (01) (02), 35.734. AA (01)

1шт.

2

NSS

NOT SOLD SEPARAT

Quick Coupler, Incl in 1

1шт.

3

305497A1

PLUG,1.25" x 0.5"

2шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

5

305495A1

COVER

1шт.

6

NSS

NOT SOLD SEPARAT

Seal Foam, Incl in 1

2шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

8

492-11031

LOCK WASHER,5/16"

3шт.

9

495-11034

WASHER,5/16", SAE

3шт.
