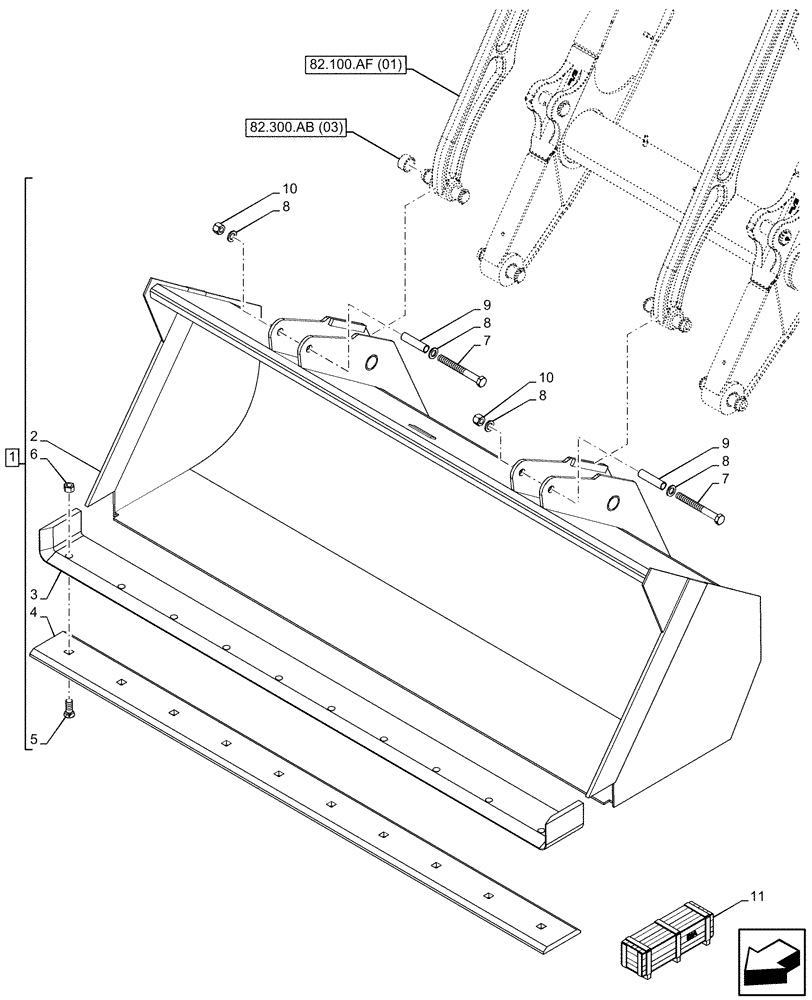

Запчасти Case 580N EP (82.300.AN[04]) - VAR - 747657 - BUCKET, 1YD - 82INCH/2083MM HD LL (82) - FRONT LOADER & BUCKET

1

84422630

BUCKET,82 Inch W/ Cutting Edge

1YD 82Inch/2083mm HD LL, ASSY, Incl 2 - 10

1шт.

See Bucket Components also in Figure 82.300.AB (03)

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

132988A1

CUTTING EDGE

1шт.

4

411661A1

CUTTING EDGE,Bolt On, 10 Hole, 152mm W x 2113mm L

1шт.

5

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

6

29-1012

NUT,3/4"-10, G8

10шт.

7

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

2шт.

10

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

11

84482605

BUCKET

Bucket 82 Inch W/ Cutting Edge, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
