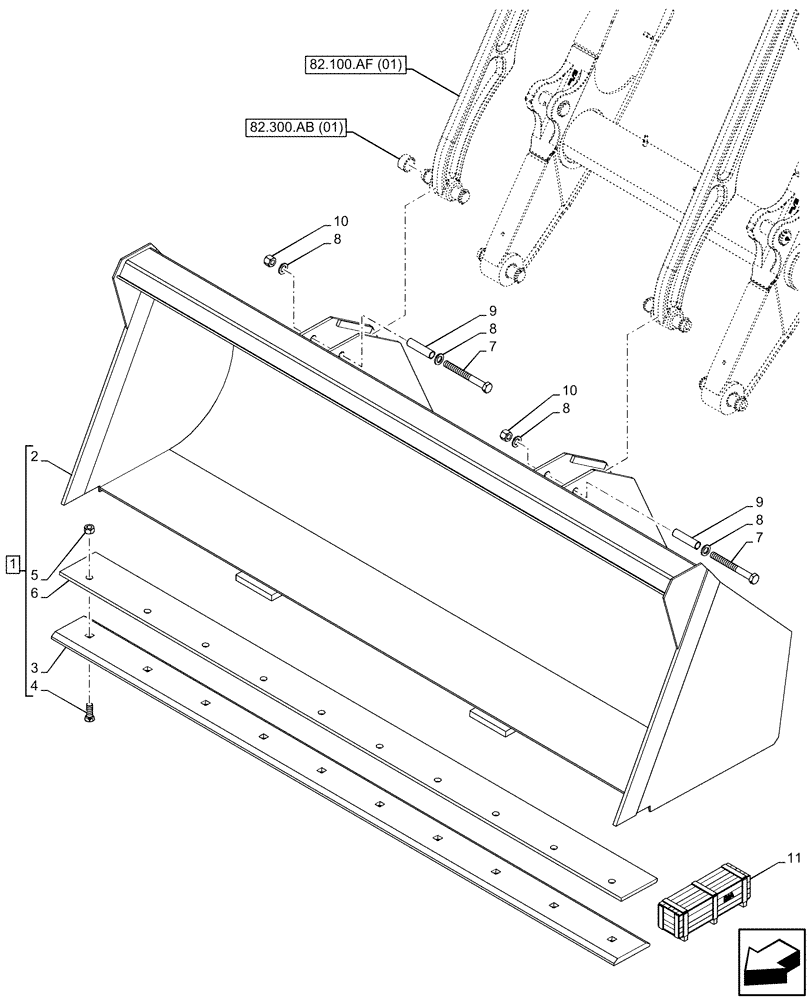

Запчасти Case 580N EP (82.300.AN[01]) - VAR - 747539 - BUCKET, 1.25 YD - 93INCH/2362MM LL (82) - FRONT LOADER & BUCKET

1

84470522

BUCKET,93 Inch LLGP W/ Blade

1,25YD 93Inch/2362mm, ASSY, Incl 2 - 10

1шт.

See Bucket Components also in Figure 82.300.AB (01)

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

87375240

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2392mm L

1шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

5

429-1012

NUT,3/4"-10, G8

10шт.

6

134844A1

CUTTING EDGE,Bolt On, 10 Holes, 12mm W x 2389mm L

1шт.

7

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

2шт.

10

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

11

84482612

SERVICE KIT

Bucket 93 Inch LLGP W/ Blade, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
