(82.300.AB[03]) - VAR - 747657 - BUCKET, 1YD - 82INCH/2083MM HD LL, BUSHING

Запчасти Case 580N EP (82.300.AB[03]) - VAR - 747657 - BUCKET, 1YD - 82INCH/2083MM HD LL, BUSHING (82) - FRONT LOADER & BUCKET

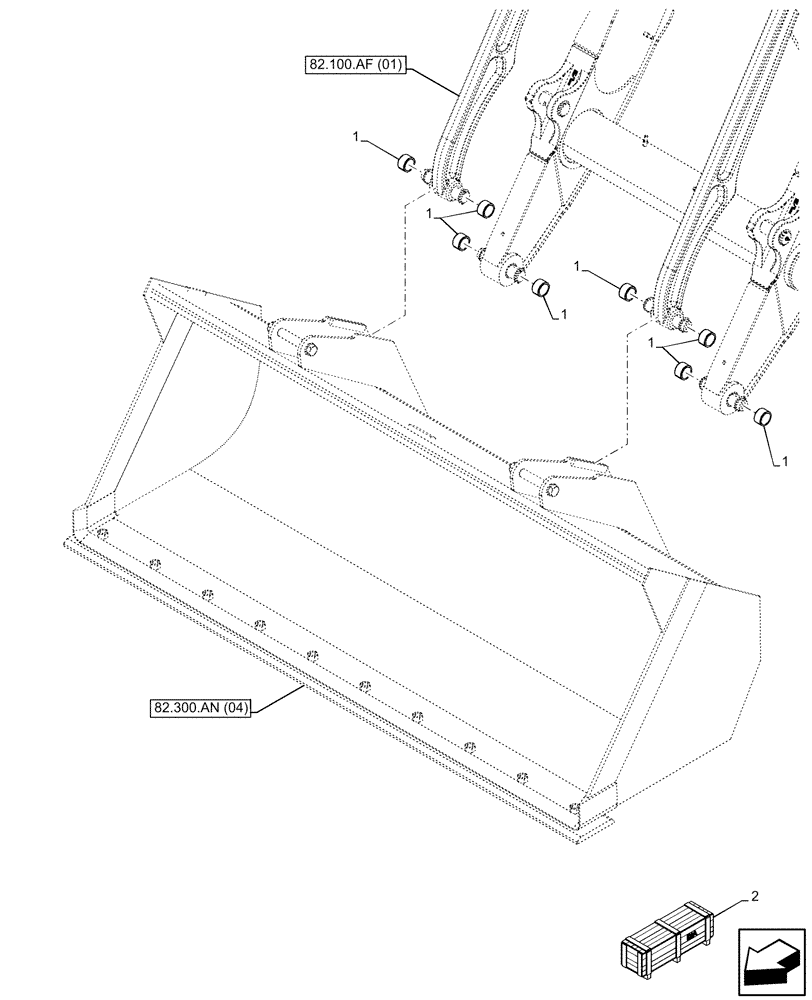

Схема запчастей Case 580N EP - (82.300.AB[03]) - VAR - 747657 - BUCKET, 1YD - 82INCH/2083MM HD LL, BUSHING (82) - FRONT LOADER & BUCKET
82.100.af (01)
1
2
1
1
1
1
1
82.300.an (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

2

84466054

BUCKET

Bucket 82 Inch, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84482605

BUCKET

Bucket 82 Inch W/ Cutting Edge, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
