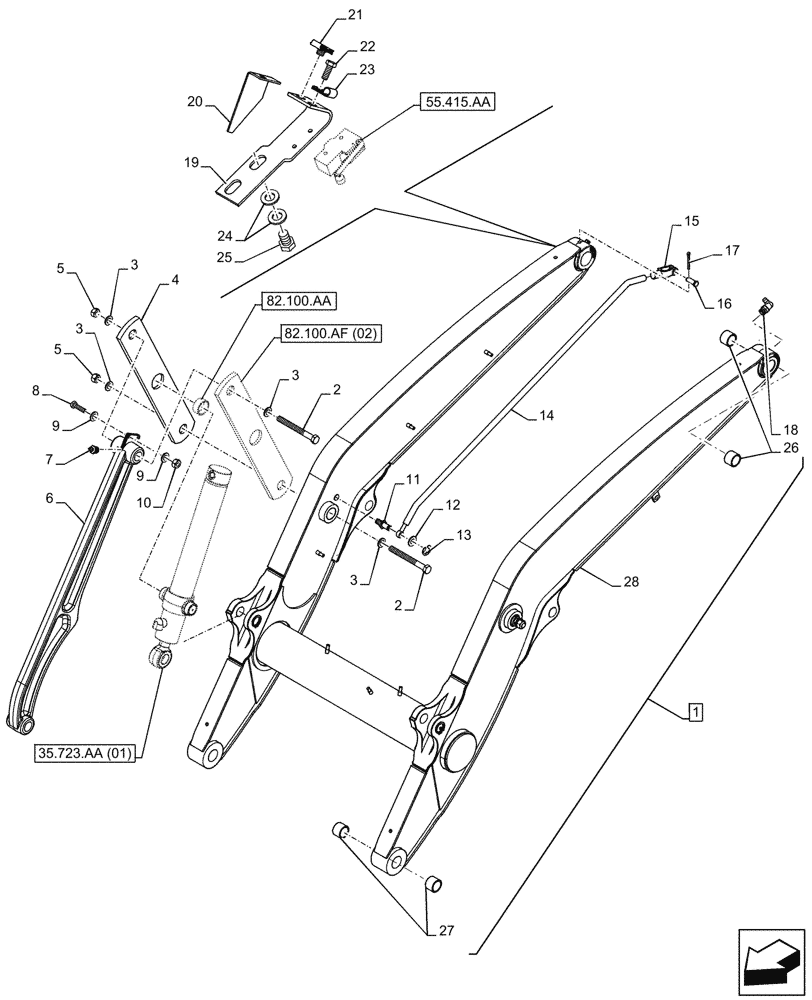

Запчасти Case 580N EP (82.100.AF[01]) - FRONT LOADER, ARM - END S/N NGC729079 (82) - FRONT LOADER & BUCKET

1

47369268

LOADER ARM

ASSY, Anti-Rollback RTD, Incl 18, 26 - 28

1шт.

2

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

4

139180A1

LINK ASSY.

3шт.

5

829-1420

NUT,M20, Cl 10

4шт.

6

84216090

LINK

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

11

192815A1

PIN,1/2" - 13, 1.85" L

1шт.

12

495-11053

WASHER,1/2", SAE

1шт.

13

103-3350

SNAP RING,#50, .392" Dia, E-Type

1шт.

14

87712370

ROD

1шт.

15

D134900

CLEVIS,3/8-24"

1шт.

Welded to Rod

1шт.

16

87548980

CLEVIS PIN,3/8" x 1"

1шт.

17

432-612

COTTER PIN,3/32" x 3/4"

1шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

19

128818A1

SUPPORT

1шт.

20

142524A1

PROTECTOR

1шт.

21

833-40406

NUT,M6, U

2шт.

22

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

23

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

25

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

2шт.

26

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

4шт.

27

109268A1

BUSHING,40.3mm ID x 50mm OD x 35mm L

4шт.

28

NSS

NOT SOLD SEPARAT

Loader Arm, Incl in 1

1шт.
