(82.100.AA[01]) - ARM, PIVOT, BUSHING - END S/N NGC729079

Запчасти Case 580N EP (82.100.AA[01]) - ARM, PIVOT, BUSHING - END S/N NGC729079 (82) - FRONT LOADER & BUCKET

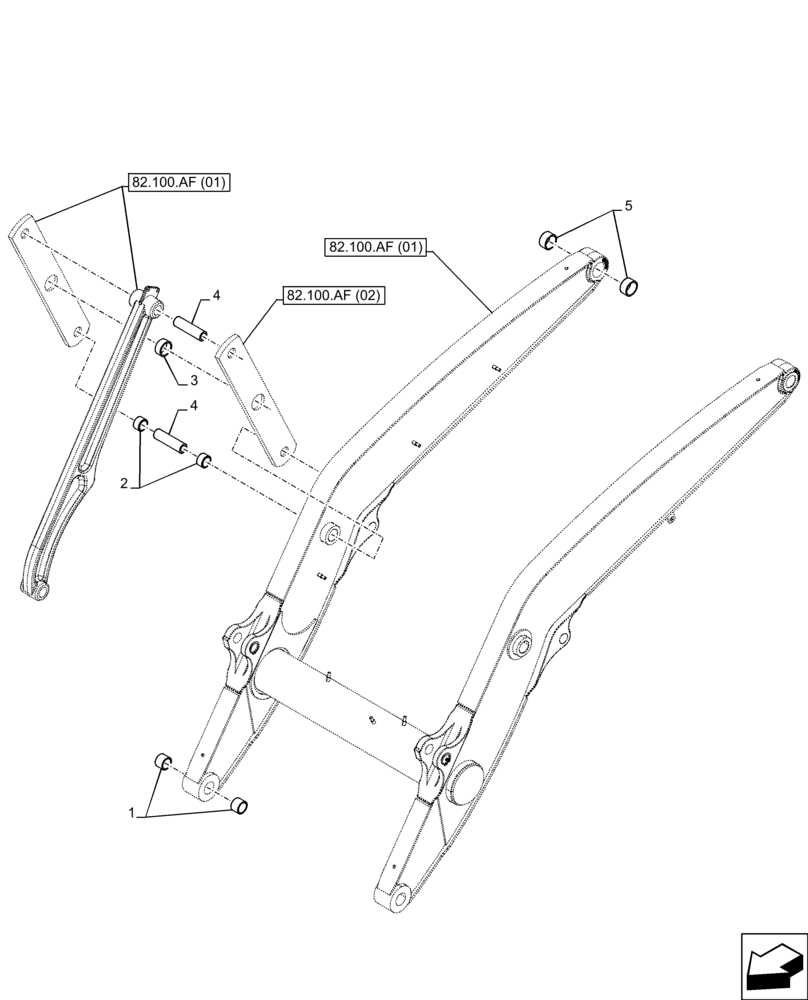

Схема запчастей Case 580N EP - (82.100.AA[01]) - ARM, PIVOT, BUSHING - END S/N NGC729079 (82) - FRONT LOADER & BUCKET
3
4
5
1
82.100.af (01)
4
2
82.100.af (01)
82.100.af (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

109268A1

BUSHING,40.3mm ID x 50mm OD x 35mm L

4шт.

2

100696A1

BUSHING,38.41mm ID x 47.65mm OD x 28.6mm L

4шт.

3

D151034

BUSHING,50.23mm ID x 60mm OD x 25.4mm L

1шт.

4

D132076

SPACER,23.75mm ID x 38.07mm OD x 135mm L

4шт.

5

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

4шт.

Выбрано товаров: 5
