(55.518.AW[02]) - VAR - 423000, 442082 - CANOPY, WINDSHIELD WIPER, ARM, BLADE

Запчасти Case 580N EP (55.518.AW[02]) - VAR - 423000, 442082 - CANOPY, WINDSHIELD WIPER, ARM, BLADE (55) - ELECTRICAL SYSTEMS

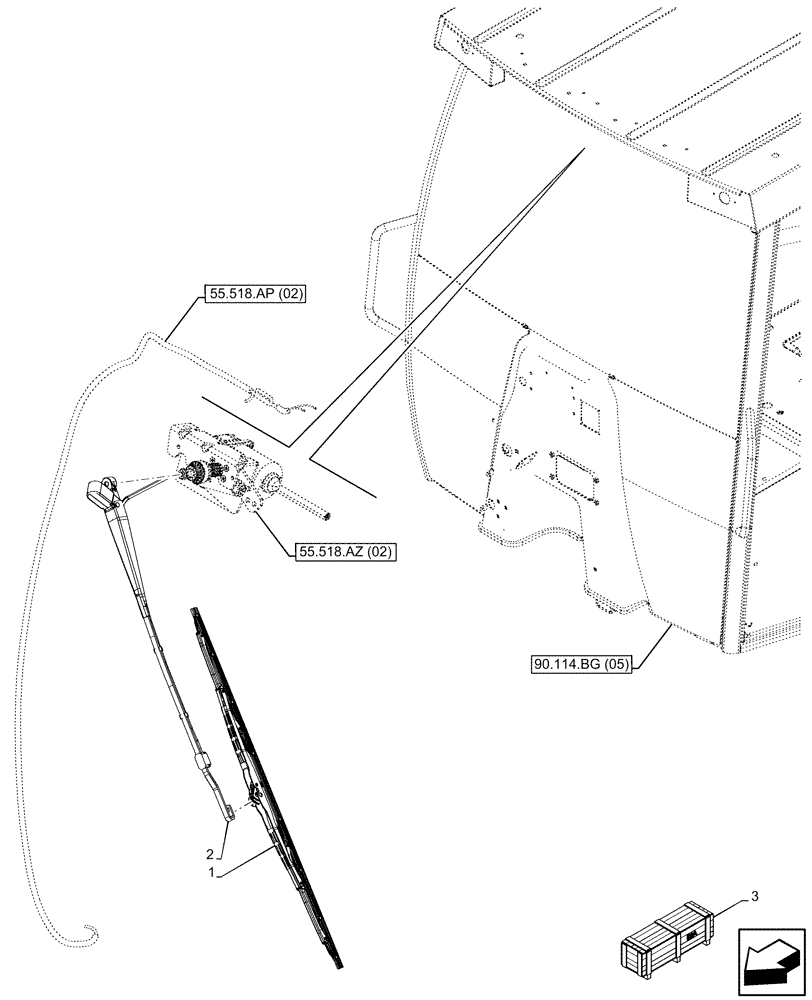

Схема запчастей Case 580N EP - (55.518.AW[02]) - VAR - 423000, 442082 - CANOPY, WINDSHIELD WIPER, ARM, BLADE (55) - ELECTRICAL SYSTEMS
90.114.bg (05)
2
3
1
55.518.az (02)
55.518.ap (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87669761

WIPER BLADE,600mm L

1шт.

2

87669391

WIPER ARM,Single, 550mm L

1шт.

3

84275492

CONSTRUCTION DIA

Canopy ASM Deluxe Wide, Incl 1, 2

1шт.

Valid for 580N, 580SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
