(55.512.CL[04]) - 7-SPOOL, 8-SPOOL, PILOT CONTROLS, LH, JOYSTICK, BUTTON

Запчасти Case 580N EP (55.512.CL[04]) - 7-SPOOL, 8-SPOOL, PILOT CONTROLS, LH, JOYSTICK, BUTTON (55) - ELECTRICAL SYSTEMS

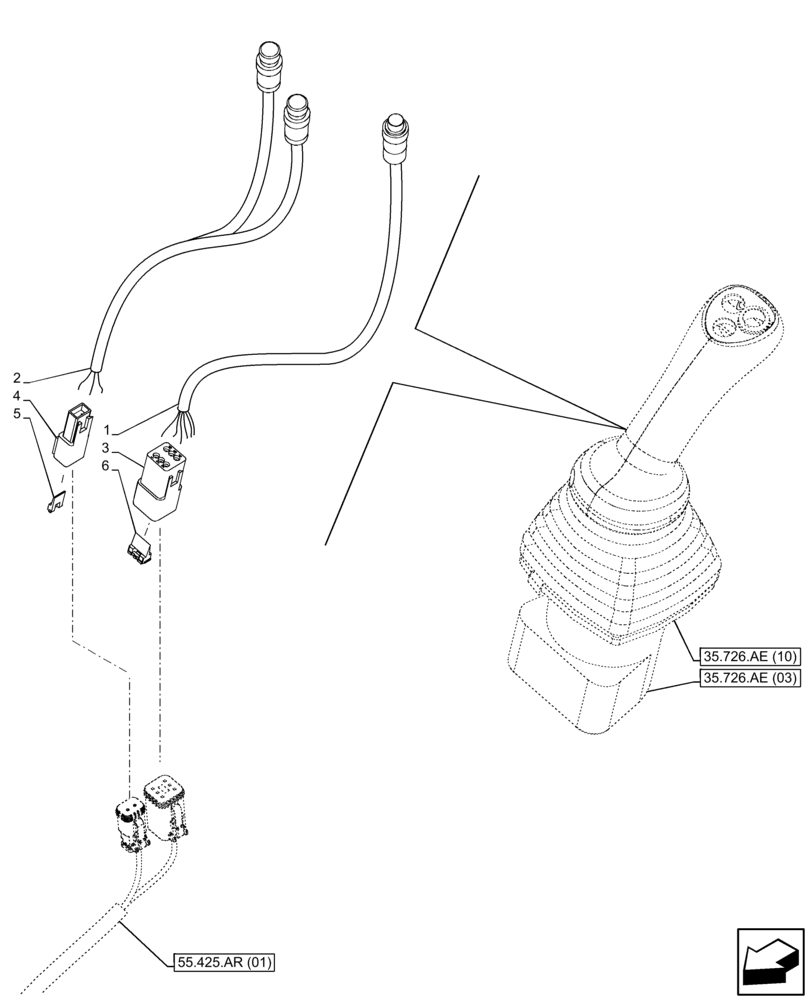

Схема запчастей Case 580N EP - (55.512.CL[04]) - 7-SPOOL, 8-SPOOL, PILOT CONTROLS, LH, JOYSTICK, BUTTON (55) - ELECTRICAL SYSTEMS
1
2
5
6
35.726.ae (10)
4
35.726.ae (03)
3
55.425.ar (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87437372

SWITCH ASSY

1шт.

2

84134639

SWITCH

Push Button proportional

2шт.

3

225350C1

ELEC CONNECTOR,Male, 6 Pin

1шт.

4

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

5

225318C1

ELEC CONNECTOR,2 Pin

1шт.

6

225353C1

WEDGE,Lock, Black

1шт.

Выбрано товаров: 6
