(55.512.CL[01]) - 6-SPOOL, 7-SPOOL, PILOT CONTROLS, LH, JOYSTICK, BUTTON

Запчасти Case 580N EP (55.512.CL[01]) - 6-SPOOL, 7-SPOOL, PILOT CONTROLS, LH, JOYSTICK, BUTTON (55) - ELECTRICAL SYSTEMS

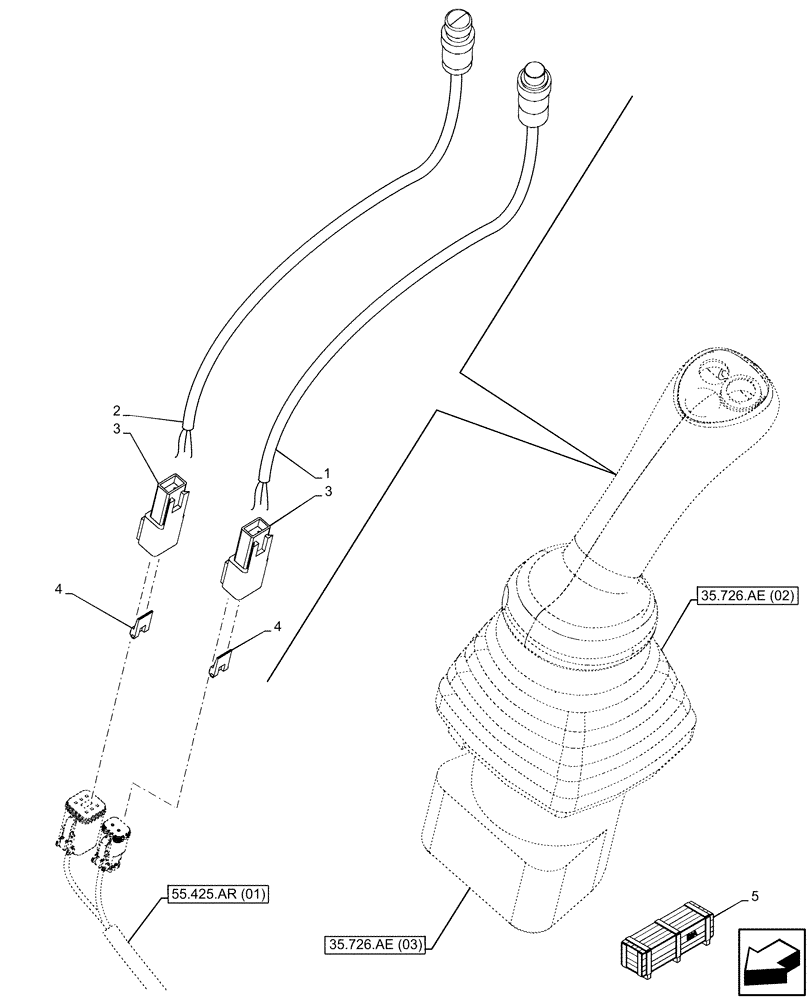

Схема запчастей Case 580N EP - (55.512.CL[01]) - 6-SPOOL, 7-SPOOL, PILOT CONTROLS, LH, JOYSTICK, BUTTON (55) - ELECTRICAL SYSTEMS
1
35.726.ae (03)
4
4
55.425.ar (01)
35.726.ae (02)
3
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87437372

SWITCH ASSY

Push Horn

1шт.

2

87437373

SWITCH ASSY

Push Uni-Dir

1шт.

3

225315C1

ELEC CONNECTOR,Male, 2 Pin

2шт.

4

225318C1

ELEC CONNECTOR,2 Pin

2шт.

5

47593980

CONSTRUCTION DIA

Dipper Oscillation, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 6
