(55.510.AN[02]) - CANOPY, POWERSHUTTLE TRANSMISSION, FRONT CONSOLE, HARNESS

Запчасти Case 580N EP (55.510.AN[02]) - CANOPY, POWERSHUTTLE TRANSMISSION, FRONT CONSOLE, HARNESS (55) - ELECTRICAL SYSTEMS

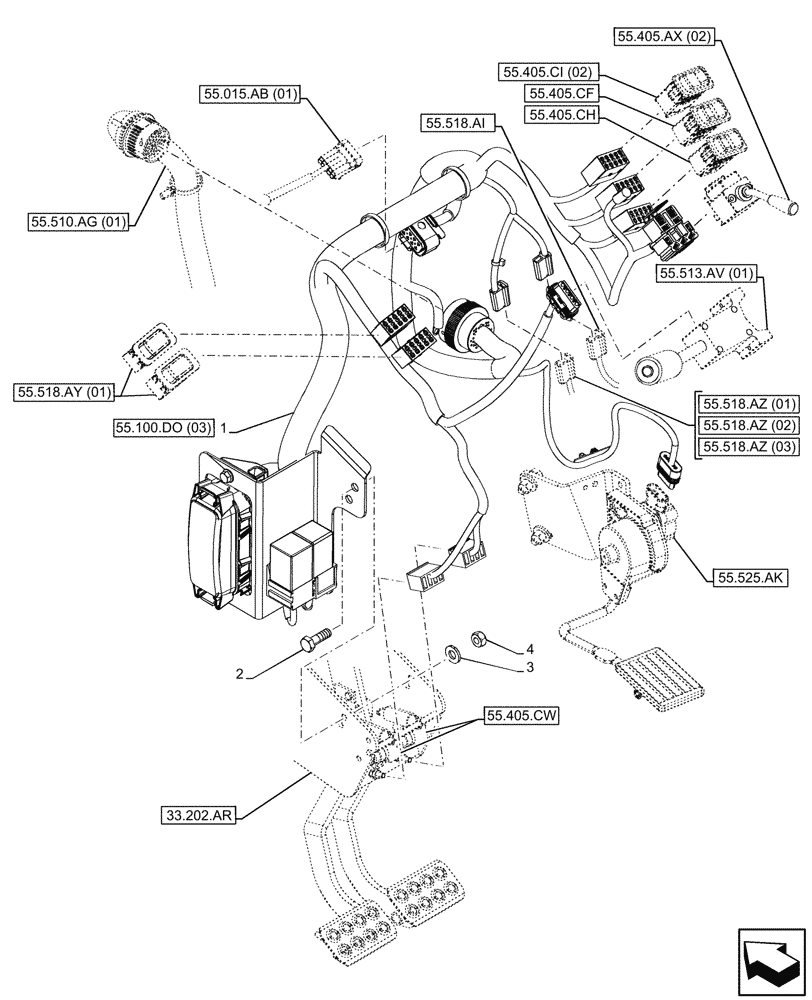

Схема запчастей Case 580N EP - (55.510.AN[02]) - CANOPY, POWERSHUTTLE TRANSMISSION, FRONT CONSOLE, HARNESS (55) - ELECTRICAL SYSTEMS
33.202.ar
3
1
4
2
55.518.az (02)
55.518.ai
55.405.ch
55.518.az (01)
55.518.az (03)
55.405.ci (02)
55.100.do (03)
55.510.ag (01)
55.405.ax (02)
55.513.av (01)
55.518.ay (01)
55.525.ak
55.405.cf
55.015.ab (01)
55.405.cw
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47714104

WIRE HARNESS

Front Console, ASSY

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
