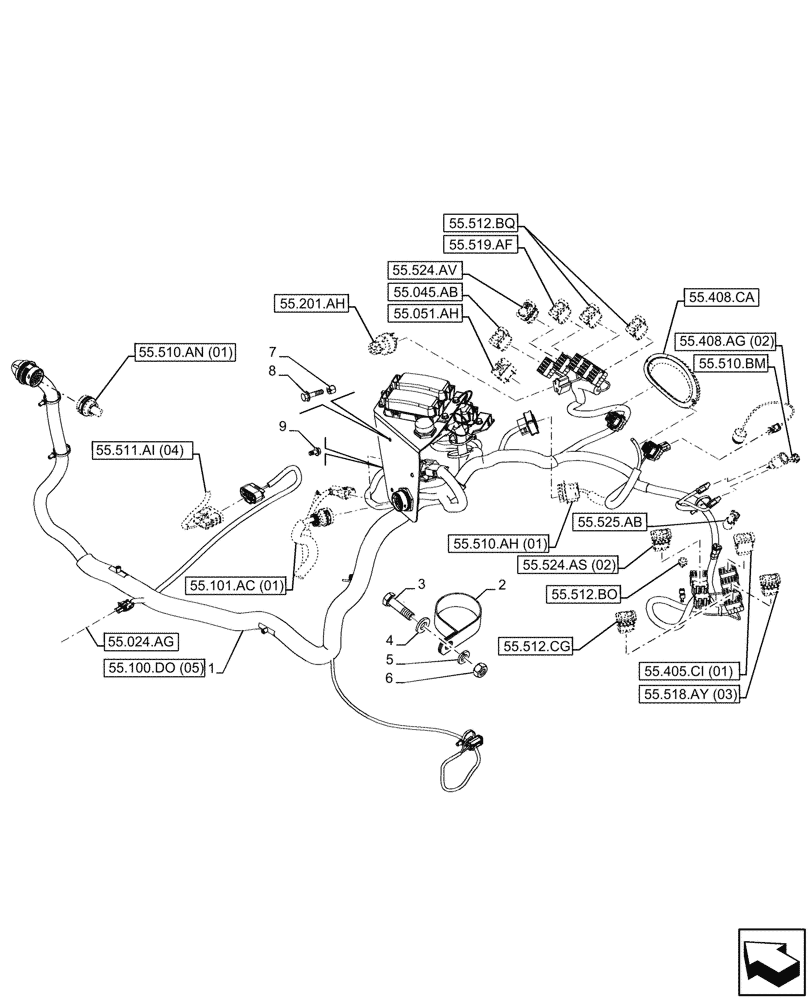

Запчасти Case 580N EP (55.510.AG[02]) - POWERSHUTTLE TRANSMISSION, RIGHT SIDE HARNESS (55) - ELECTRICAL SYSTEMS

1

47480929

WIRE HARNESS

Side Console, Standard Transmission, ASSY

1шт.

2

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

4

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

5

892-11008

LOCK WASHER,8mm ID

1шт.

6

824-1408

NUT,M8 x 1.25, Cl 10

1шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

9

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.
