(55.425.AS[03]) - VAR - 423078, 747669 - BACKHOE ARM, PILOT CONTROLS, HARNESS, RELAY, DIODE

Запчасти Case 580N EP (55.425.AS[03]) - VAR - 423078, 747669 - BACKHOE ARM, PILOT CONTROLS, HARNESS, RELAY, DIODE (55) - ELECTRICAL SYSTEMS

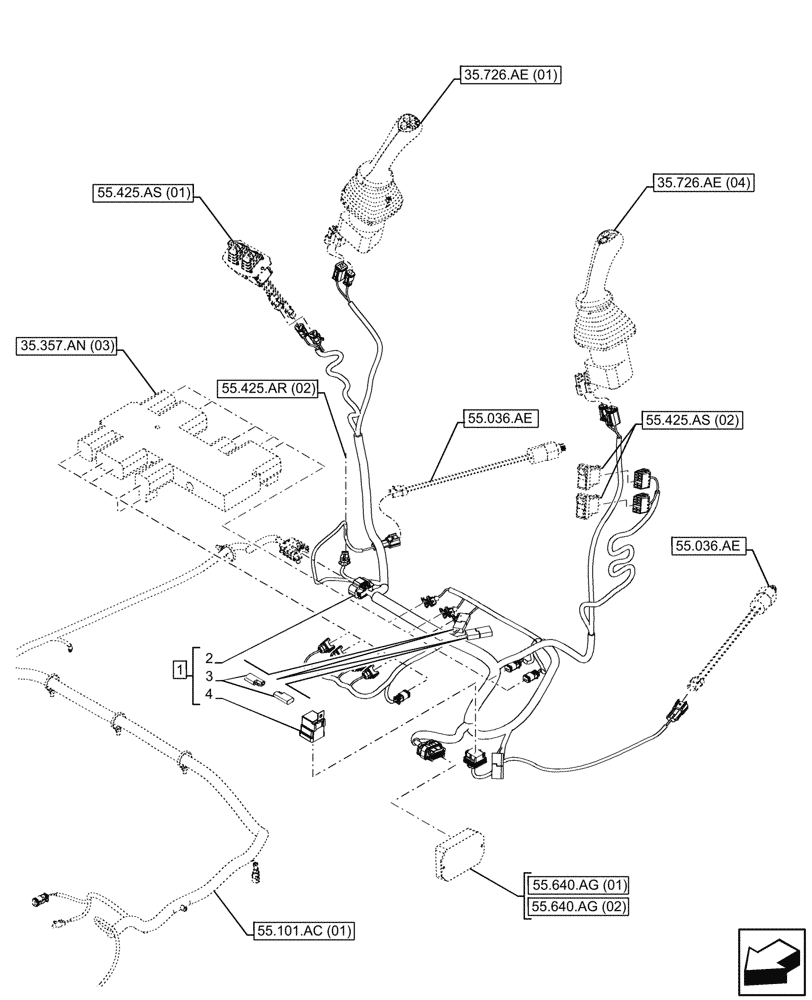

Схема запчастей Case 580N EP - (55.425.AS[03]) - VAR - 423078, 747669 - BACKHOE ARM, PILOT CONTROLS, HARNESS, RELAY, DIODE (55) - ELECTRICAL SYSTEMS
55.640.ag (02)
1
4
2
3
35.357.an (03)
55.425.as (02)
55.425.ar (02)
55.425.as (01)
35.726.ae (01)
55.036.ae
55.036.ae
35.726.ae (04)
55.640.ag (01)
55.101.ac (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84342284

HARNESS

ASSY, Pilot Control, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

293256A2

RELAY,12V

1шт.

4

L71879

DIODE ELEMENT,400V, 3A

3шт.

Выбрано товаров: 4
