(55.425.AR[01]) - VAR - 423078, 747669 - BACKHOE ARM, PILOT CONTROLS, HARNESS

Запчасти Case 580N EP (55.425.AR[01]) - VAR - 423078, 747669 - BACKHOE ARM, PILOT CONTROLS, HARNESS (55) - ELECTRICAL SYSTEMS

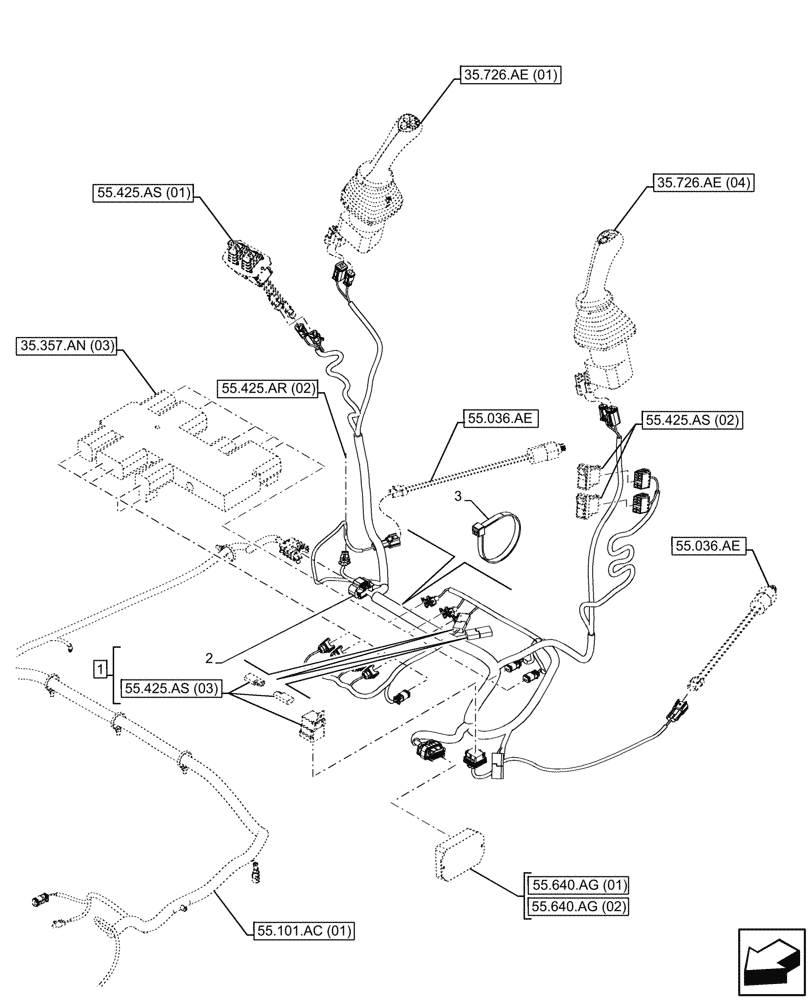

Схема запчастей Case 580N EP - (55.425.AR[01]) - VAR - 423078, 747669 - BACKHOE ARM, PILOT CONTROLS, HARNESS (55) - ELECTRICAL SYSTEMS
55.640.ag (02)
3
1
2
35.726.ae (04)
55.425.as (03)
35.357.an (03)
55.425.as (02)
55.425.ar (02)
55.425.as (01)
35.726.ae (01)
55.036.ae
55.036.ae
55.640.ag (01)
55.101.ac (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84342284

HARNESS

ASSY, Pilot Control, Incl 2

1шт.

See Harness Assy Components also in Figure 55.202.AX (03)

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

Выбрано товаров: 4
