(55.405.AX[01]) - POWERSHUTTLE TRANSMISSION, INDICATOR LIGHT, SWITCH

Запчасти Case 580N EP (55.405.AX[01]) - POWERSHUTTLE TRANSMISSION, INDICATOR LIGHT, SWITCH (55) - ELECTRICAL SYSTEMS

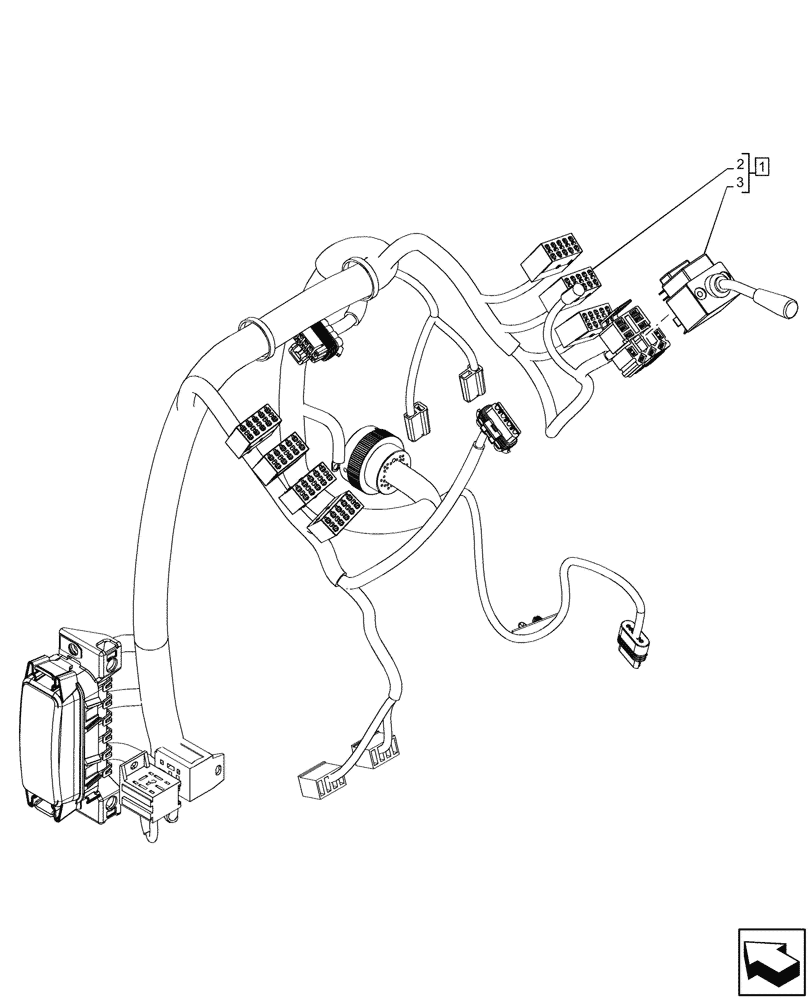

Схема запчастей Case 580N EP - (55.405.AX[01]) - POWERSHUTTLE TRANSMISSION, INDICATOR LIGHT, SWITCH (55) - ELECTRICAL SYSTEMS
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47714108

WIRE HARNESS

ASSY, Front Console, Incl 2, 3

1шт.

See Harness Transmission Components also in Figure 55.100.DO (02), 90.108.AE (03)

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

389487A1

LIGHT SWITCH

Turn Signal/Driving Lamp High/Low Beam

1шт.
