(55.404.BM[02]) - VAR - 747853, 747854, 747855 - CAB, NARROW, REAR LIGHT

Запчасти Case 580N EP (55.404.BM[02]) - VAR - 747853, 747854, 747855 - CAB, NARROW, REAR LIGHT (55) - ELECTRICAL SYSTEMS

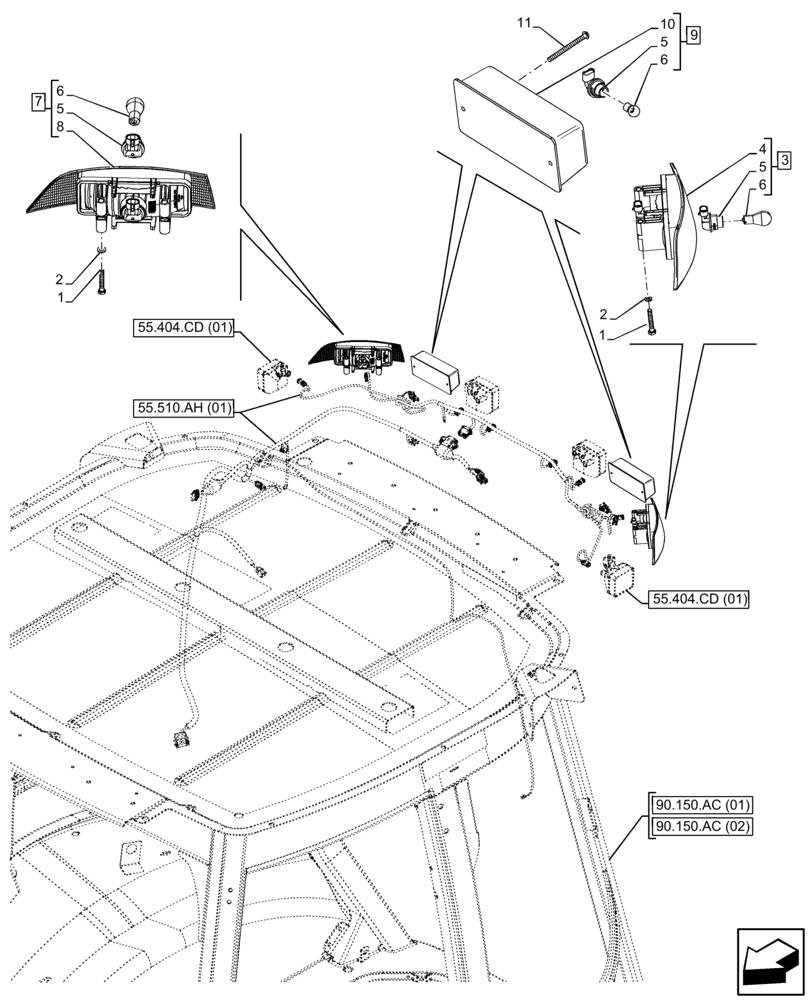

Схема запчастей Case 580N EP - (55.404.BM[02]) - VAR - 747853, 747854, 747855 - CAB, NARROW, REAR LIGHT (55) - ELECTRICAL SYSTEMS
55.404.cd (01)
2
90.150.ac (02)
4
55.404.cd (01)
11
10
6
6
8
1
9
90.150.ac (01)
1
5
3
6
5
5
7
2
55.510.ah (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

4шт.

2

87713130

WASHER,6.85mm ID x 12.75mm OD x 1.8mm Thk

4шт.

3

87301973

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

ASSY, Rear LH, Incl 3 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Lamp Housing, Incl in 3

1шт.

5

87304554

HOLDER

3шт.

6

14148190

BULB,P21W, 12V, 21W

3шт.

7

87301972

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

ASSY, Rear RH, Incl 5, 6, 8

1шт.

8

NSS

NOT SOLD SEPARAT

Lamp Housing, Rear Right, Incl in 7

1шт.

9

92260C1

LAMP,12V, 27W, Red

ASSY, Incl in 10 - 12

2шт.

10

NSS

NOT SOLD SEPARAT

Lamp Housing, Incl in 9

2шт.

11

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

4шт.
