(55.050.AA[01]) - VAR - 747853, 747855 - AIR CONDITIONER, CAB AIR PRESSURE SWITCH

Запчасти Case 580N EP (55.050.AA[01]) - VAR - 747853, 747855 - AIR CONDITIONER, CAB AIR PRESSURE SWITCH (55) - ELECTRICAL SYSTEMS

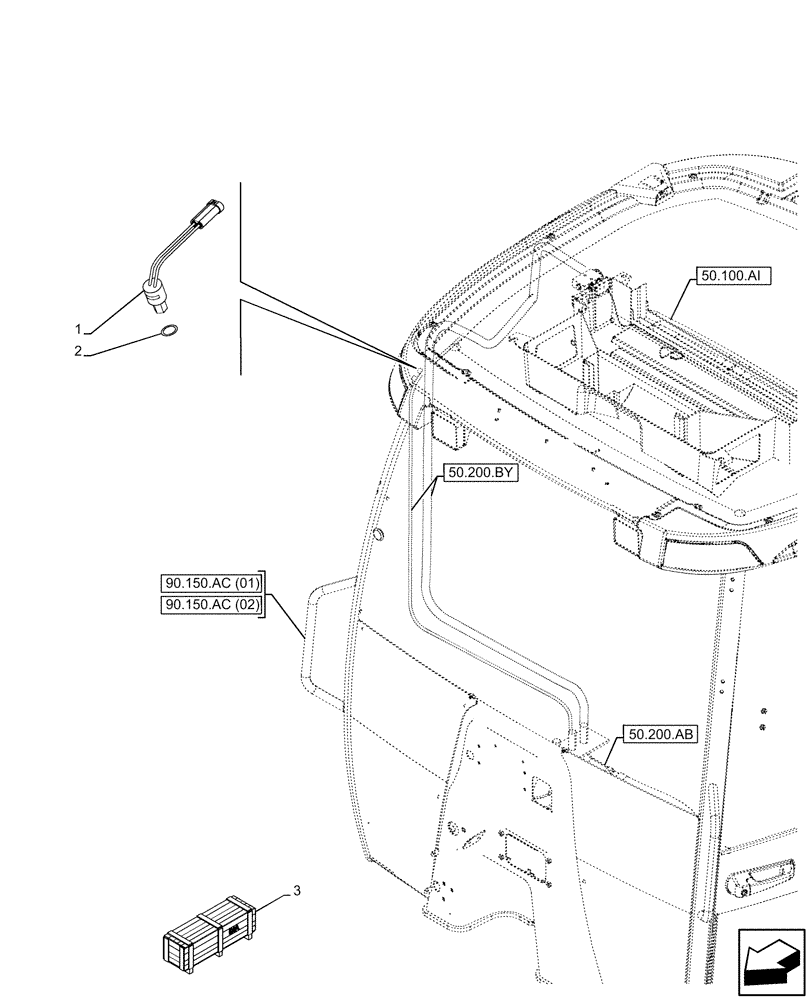

Схема запчастей Case 580N EP - (55.050.AA[01]) - VAR - 747853, 747855 - AIR CONDITIONER, CAB AIR PRESSURE SWITCH (55) - ELECTRICAL SYSTEMS
90.150.ac (02)
90.150.ac (01)
50.100.ai
1
50.200.ab
2
3
50.200.by
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87000228

SWITCH, A/C LOW PRES

1шт.

2

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

3

47699070

CONSTRUCTION DIA

Air Conditioning HPCR, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 4
